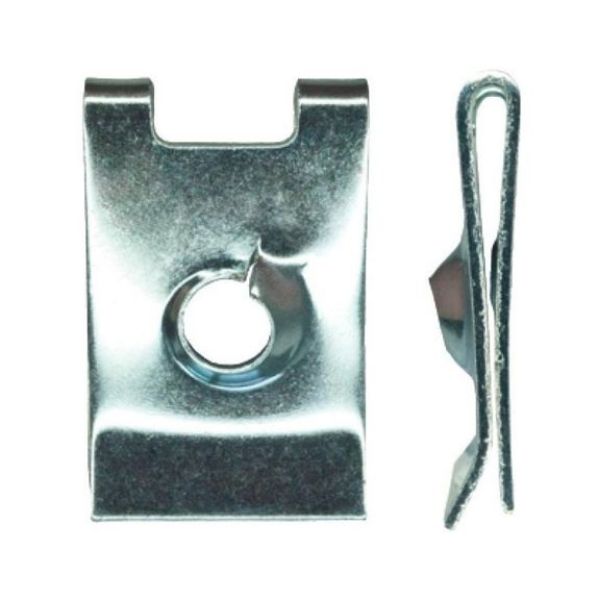

Sheet metal nut Type 1 - NUT-SHT-BMW-(A3A)-L24,8MM-D6,5MM

Sheet metal nut Type 1 - NUT-SHT-BMW-(A3A)-L24,8MM-D6,5MM

Sheet metal nut Type 1 - NUT-SHT-BMW-(A3A)-L24,8MM-D6,5MM

Sheet metal nut Type 1

Article No. 050011369

Sheet-metal nut, type 1 NUT-SHT-BMW-(A3A)-L24,8MM-D6,5MM

€19.47 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

Packaging Unit *

Quick and secure connection of two or more components
Easy assembly and disassembly
Tolerance compensation and blind mounting possible

Quick and secure connection of two or more components
Easy assembly and disassembly
Tolerance compensation and blind mounting possible

Products specifications

Form	A
Suitable for screw	Diameter 6.5 mm
Min./max. attachment thickness	0.7-1.5 mm
Length (l)	24.8 mm
Width (B)	16 mm
Distance between centre of hole and edge (C)	13 mm
Material thickness (S)	0.8 mm
Material	Spring steel CK 67
Surface	Colourless, galvanised
Corresponds to original spare part number	803821117, 207217565, A0009945045, 0227326

Products specifications

Form	A
Suitable for screw	Diameter 6.5 mm
Min./max. attachment thickness	0.7-1.5 mm
Length (l)	24.8 mm
Width (B)	16 mm
Distance between centre of hole and edge (C)	13 mm
Material thickness (S)	0.8 mm
Material	Spring steel CK 67
Surface	Colourless, galvanised
Corresponds to original spare part number	803821117, 207217565, A0009945045, 0227326
