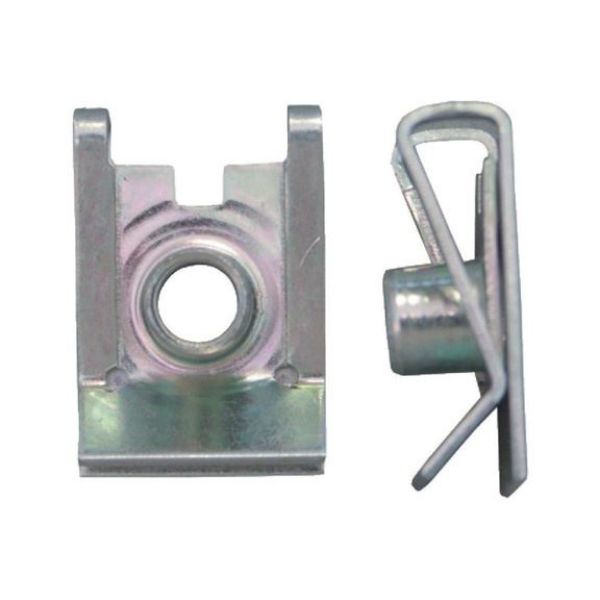

Sheet metal nut Type 6

Article No. 0501104119

Sheet-metal nut, type 6 NUT-SHT-MB-(ZN)-BLACK-M6

€1.65 inc. VAT price per 1 PCS

Available on Order
Price may vary

Qty:

+ -

With threaded shank, for challenging connections

With threaded shank, for challenging connections

Application area

Slide onto (sheet metal) edges

Products specifications

Form	I
Suitable for screw thread	M6
Suitable for screw	M6
Min./max. attachment thickness	0.5-4.8 mm
Length (l)	23.6 mm
Width (B)	16 mm
Distance between centre of hole and edge (C)	11.5 mm
Material thickness (S)	0.8 mm
Material	Unalloyed steel, C45
Surface	Colourless, galvanised
Corresponds to original spare part number	A0039941745

Würth Catalogue(2)

Catalogue page as PDF 1 | 2

Products specifications

Form	I
Suitable for screw thread	M6
Suitable for screw	M6
Min./max. attachment thickness	0.5-4.8 mm
Length (l)	23.6 mm
Width (B)	16 mm
Distance between centre of hole and edge (C)	11.5 mm
Material thickness (S)	0.8 mm
Material	Unalloyed steel, C45
Surface	Colourless, galvanised
Corresponds to original spare part number	A0039941745
