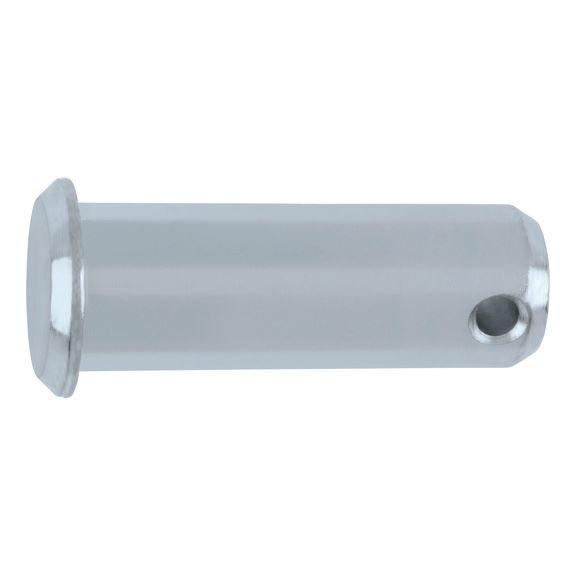

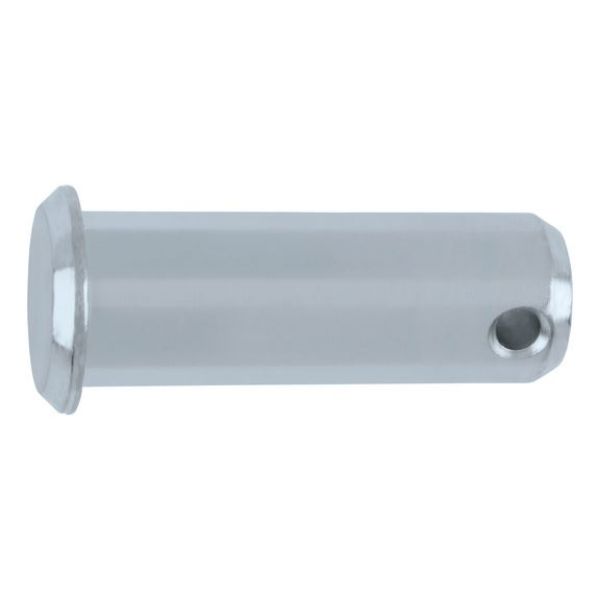

Stud with small head

Article No. 0260005

DIN 1434 steel galvanised BLT-SPLT-DIN1434-(A2K)-5X18/1,6

€1.82 inc. VAT price per 1 PCS

Available on Order
Price may vary

Qty:

+ -

DIN 1434, galvanised steel, blue passivated (A2K)

DIN 1434, galvanised steel, blue passivated (A2K)

Products specifications

Nominal diameter (d₁)	5 mm
Diameter of hole (d₂)	1.6 mm
Length (l₁)	18 mm
Distance from bolt end to centre of hole (l_e)	2 mm
Head diameter (d_k)	8 mm
Head height (k₁)	1.5 mm
Material	Steel
Surface	Galvanised
Form	Form B mit Splintloch

Würth Catalogue(2)

Catalogue page as PDF 1

Datasheets(1)

CAD Data (available after login)

Products specifications

Nominal diameter (d₁)	5 mm
Diameter of hole (d₂)	1.6 mm
Length (l₁)	18 mm
Distance from bolt end to centre of hole (l_e)	2 mm
Head diameter (d_k)	8 mm
Head height (k₁)	1.5 mm
Material	Steel
Surface	Galvanised
Form	Form B mit Splintloch
