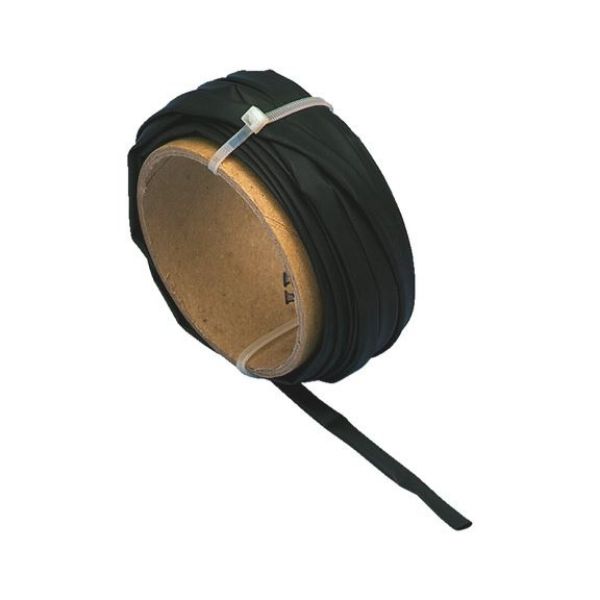

Thin-walled heat-shrink hose

Article No. 07718508

Heat shrink hose HSHRHOSE-BLACK-(51,0-25,4MM)

€120.36 inc. VAT price per 5 PCS

AVAILABLE

Qty:

+ -

Without internal adhesive

On cardboard core for ORSY^® 10 dispenser system

Proof of Performance

UL 224 (except transparent variant)

Without internal adhesive

On cardboard core for ORSY^® 10 dispenser system

Proof of Performance

UL 224 (except transparent variant)

Products specifications

Colour	Black
Diameter	51 mm
Diameter (shrunk)	25.4 mm
Sleeve-wall thickness when shrunk	0.97 mm
Dielectric strength	20 kV/mm
Min./max. shrinkage temperature	90 to 200 °C
Min./max. temperature conditions	-55 to 135 °C
Material	Polyolefin
Flame-retardant	Yes

Würth Catalogue(2)

Catalogue page as PDF 1

Certificates/Documents(1)

Products specifications

Colour	Black
Diameter	51 mm
Diameter (shrunk)	25.4 mm
Sleeve-wall thickness when shrunk	0.97 mm
Dielectric strength	20 kV/mm
Min./max. shrinkage temperature	90 to 200 °C
Min./max. temperature conditions	-55 to 135 °C
Material	Polyolefin
Flame-retardant	Yes
