Thread die HSS DIN EN 22568 for standard metric ISO threads

Article No. 065210

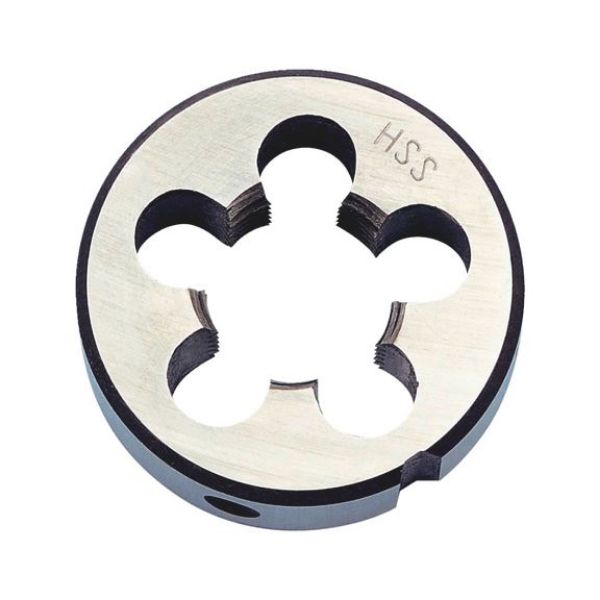

Threaded die HSS DIN 13-1 THRDIE-HSS-DIN223-M10

€16.05 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Round die in accordance with DIN EN 22568 in closed, pre-slotted design (shape B) for the production of standard metric ISO threads according to DIN 13 in steel up to 850 N/mm² strength and in cast iron.

Two-sided cut

Can be used on both sides
Threads can be cut in one process
Easy cutting and excellent chip removal in cutting direction

High edge retention

Specification
Application
Technical Information
Documents

Two-sided cut

Can be used on both sides
Threads can be cut in one process
Easy cutting and excellent chip removal in cutting direction

High edge retention

Instructions

The die is placed in the die holder at the height of the middle screw. The screws are tightened with a screwdriver. The die is placed vertically on the workpiece. Can be used on both sides. When cutting, sufficient cutting oil must be added. After two revolutions, the cut can be broken by briefly turning back.

Products specifications

Material to be processed	Steel<br>Cast iron
Thread type	Metric thread
Form	B
Surface	Bare
Cutting material	HSS
Tolerance class	6g
Thread type x nominal diameter	M10
Pitch	1.5 mm
Outer diameter	30 mm
Height	11 mm

Würth Catalogue(2)

Catalogue page as PDF 1

Flip catalog

Products specifications

Material to be processed	Steel<br>Cast iron
Thread type	Metric thread
Form	B
Surface	Bare
Cutting material	HSS
Tolerance class	6g
Thread type x nominal diameter	M10
Pitch	1.5 mm
Outer diameter	30 mm
Height	11 mm
