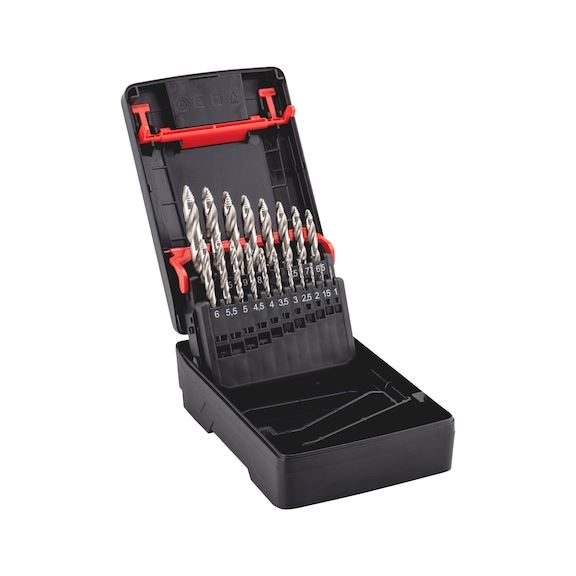

Twist drill bit assortment HSS DIN 338 SMART STEP 19 pcs

Article No. 0624930019

Tw. drill bit HSS DIN 338 SMART STEP 19 pcs Syska DRL-MET-SET-HSS-DIN338-SMARTSTEP-(D1-10) ZEBRA SMART STEP

€115.64 inc. VAT price per 1 PCS

LOW STOCK

Packaging Unit *

Qty:

+ -

The high-performance drill bit with unique SMART STEP technology (from dia. 2.5 mm) for high-precision circular drill holes in steel up to 1000 N/mm², aluminium, plastic, (e.g. acrylic glass, HPL, Trespa or multiplex boards) non-ferrous metals, hard and softwood. Available in the ORSY^® system cassette.

Specification
Technical Information
Documents

Products specifications

Included in delivery	1.0–10.0 mm, graduation 0.5 mm
Number of pieces in assortment/set	19 PCS
Quality	ZEBRA-Premium
Standard / drilling depth	DIN 338 / 5xD
Shank style	3-face shank
Material of sub-group	General structural steels<br>Non-alloyed tempering steels<br>Cast iron<br>Ductile iron<br>Malleable cast iron<br>Magnesium alloys<br>Copper, low-alloyed<br>Brass, long-chipping<br>Brass, short-chipping<br>Plastics, duroplastic<br>Plastics, thermoplastic<br>Aluminium<br>Aluminium (<10% silicon)<br>Aluminium wrought alloys<br>Aluminium casting alloys (<10% silicon)<br>Tool steels
Surface	Multiple refined
Cutting material	HSS
Suitable for drill (points system)	4 of 4 points
Suitable for cordless drills (points system)	4 of 4 points
Suitable for upright drilling machine (points system)	4 of 4 points
Service life (points system)	3 of 4 points
Drilling speed (point system)	4 of 4 points
Bore hole quality (point system)	4 of 4 points
Versatility (points system)	3 of 4 points
Drilling behaviour (point system)	4 of 4 points
Self-centring	Yes

Würth Catalogue(2)

Catalogue page as PDF 1

Flip catalog

Certificates/Documents

Products specifications

Included in delivery	1.0–10.0 mm, graduation 0.5 mm
Number of pieces in assortment/set	19 PCS
Quality	ZEBRA-Premium
Standard / drilling depth	DIN 338 / 5xD
Shank style	3-face shank
Material of sub-group	General structural steels<br>Non-alloyed tempering steels<br>Cast iron<br>Ductile iron<br>Malleable cast iron<br>Magnesium alloys<br>Copper, low-alloyed<br>Brass, long-chipping<br>Brass, short-chipping<br>Plastics, duroplastic<br>Plastics, thermoplastic<br>Aluminium<br>Aluminium (<10% silicon)<br>Aluminium wrought alloys<br>Aluminium casting alloys (<10% silicon)<br>Tool steels
Surface	Multiple refined
Cutting material	HSS
Suitable for drill (points system)	4 of 4 points
Suitable for cordless drills (points system)	4 of 4 points
Suitable for upright drilling machine (points system)	4 of 4 points
Service life (points system)	3 of 4 points
Drilling speed (point system)	4 of 4 points
Bore hole quality (point system)	4 of 4 points
Versatility (points system)	3 of 4 points
Drilling behaviour (point system)	4 of 4 points
Self-centring	Yes
