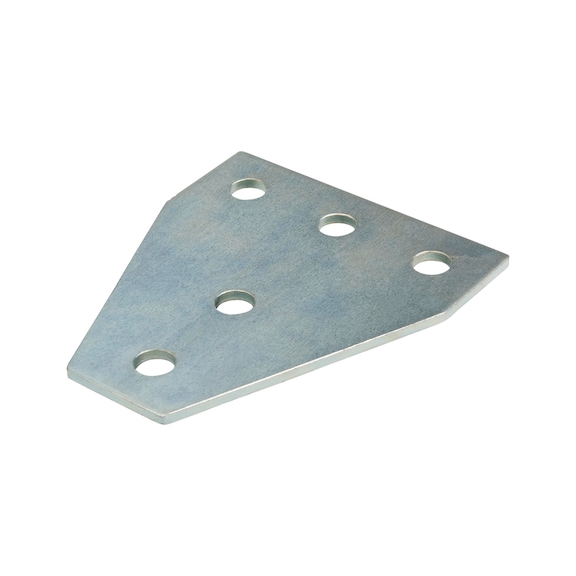

VARIFIX® flat connector, T-shaped

Article No. 0862006023

VARIFIX flat connector, T-shaped, 5 round holes FLCON-T-PRFL41-5RDHO VARIFIX

€5.94 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

Packaging Unit *

Cradle to Cradle^®-certified

Upgrading the building using non-hazardous materials
Wider range of applications for GreenBuilding and building certification in accordance with LEED^®, BREEAM^® and DGNB

Our products certified as Cradle to Cradle Certified® are resource-conserving and environmentally compatible. The standard assesses the safety, recyclability and pollutant content of materials in the final product. The focus here is on conserving resources, for example, by using recycled material in the manufacturing process.

Cradle to Cradle^®-certified

Upgrading the building using non-hazardous materials
Wider range of applications for GreenBuilding and building certification in accordance with LEED^®, BREEAM^® and DGNB

Products specifications

Suitable for mounting rail	41 x 22 mm<br>41 x 41 mm<br>41 x 44 mm<br>41 x 62 mm<br>41 x 82 mm<br>41 x 124 mm<br>41 x 128 mm<br>41 x 86 mm
Diameter of hole (RL)	13 mm
Length (L₁)	136 mm
Length 2 (L₂)	120 mm
Thickness (t)	4 mm
Hole distance (LA₁)	40 mm
Hole distance 2 (LA₂)	56 mm
Width (B)	40 mm
Product weight (per item)	370 g
Material	Structural steel, 1.0037
Surface	Zinc plated
Additional articles	VARIFIX® C-assembly rails, art. no. 0862001...; t-head fastener art. no. 0862100...; Varifix® channel nut art. no. 0862064...; Varifix® combi channel nut art. no. 0862064...; Varifix® wing nut art. no. 0862104...
Sustainability	Ressource-saving<br>Low-emission/low-pollution
