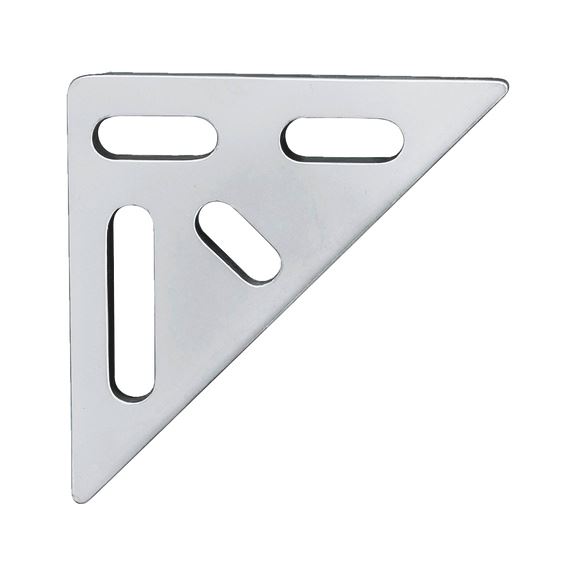

VARIFIX® triangular bracket — C2C

Article No. 0862005071

VARIFIX triangular tab galvanised steel TRIFSHPLT-PRFL36/41 VARIFIX

€2.95 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

For fixed-point mounting of C-assembly rails (longitudinal, transverse, diagonal)

Cradle to Cradle^®-certified

Upgrading the building using non-hazardous materials
Wider range of application for GreenBuilding and building certification in accordance with LEED^®, BREEAM^® and DGNB

For fixed-point mounting of C-assembly rails (longitudinal, transverse, diagonal)

Cradle to Cradle^®-certified

Upgrading the building using non-hazardous materials
Wider range of application for GreenBuilding and building certification in accordance with LEED^®, BREEAM^® and DGNB

Products specifications

Suitable for mounting rail	36 x 36 mm<br>41 x 41 mm<br>41 x 44 mm<br>41 x 62 mm<br>41 x 82 mm<br>41 x 124 mm<br>41 x 22 mm<br>41 x 128 mm<br>41 x 86 mm
Limb length (L)	106 mm
Limb length 2 (L)	106 mm
Thickness (t)	6 mm
Surface	Galvanised
Material	Steel
Elongated hole length (LL₁)	30 mm
Elongated hole length 2 (LL₂)	25 mm
Elongated hole length 3 (LL₃)	50 mm
Elongated hole width (LB₁)	11 mm
Elongated hole width 2 (LB₂)	11 mm
Elongated hole width 3 (LB₃)	11 mm
Hole distance (LA)	46 mm
Product weight (per item)	225 g

Products specifications

Suitable for mounting rail	36 x 36 mm<br>41 x 41 mm<br>41 x 44 mm<br>41 x 62 mm<br>41 x 82 mm<br>41 x 124 mm<br>41 x 22 mm<br>41 x 128 mm<br>41 x 86 mm
Limb length (L)	106 mm
Limb length 2 (L)	106 mm
Thickness (t)	6 mm
Surface	Galvanised
Material	Steel
Elongated hole length (LL₁)	30 mm
Elongated hole length 2 (LL₂)	25 mm
Elongated hole length 3 (LL₃)	50 mm
Elongated hole width (LB₁)	11 mm
Elongated hole width 2 (LB₂)	11 mm
Elongated hole width 3 (LB₃)	11 mm
Hole distance (LA)	46 mm
Product weight (per item)	225 g
