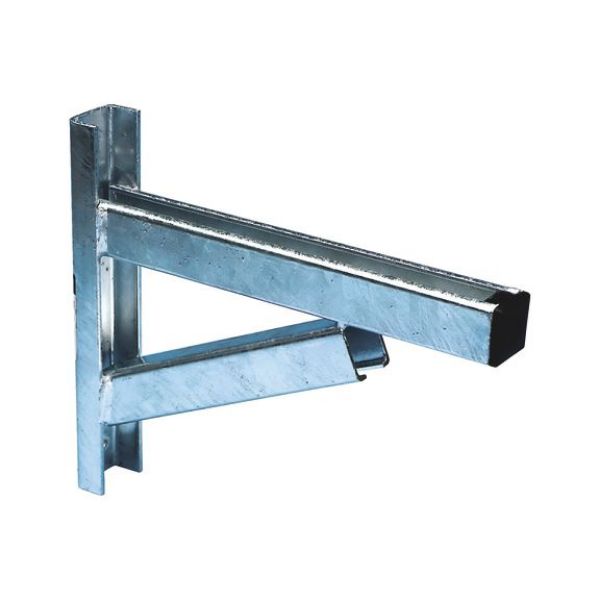

Length (l)
|
407.5 mm |
Width (B)
|
46 mm |
Height (H)
|
280 mm |
Profile width (BP)
|
36 mm |
Profile height (Hp)
|
36 mm |
Profile thickness (tp)
|
2.5 mm |
Effective length of bracket (X)
|
400 mm |
Elongated hole length (LL1)
|
25 mm |
Elongated hole width (LB1)
|
12.5 mm |
Elongated hole length 2 (LL2)
|
29.5 mm |
Elongated hole width 2 (LB2)
|
11.5 mm |
Surface
|
Hot-dip galvanised |
Hole distance on wall attachment (LA1)
|
233 mm |
Hole distance 2 (LA2)
|
50 mm |
Material
|
Structural steel, 1.0037 previously S235 JR |
Product weight (per item)
|
2199.100 g |
Fire protection certified
|
Yes |
Permissible load for loading scenario 9
|
2.26 kN |
Permissible load for loading scenario 8
|
3.4 kN |
Permissible load for loading scenario 7
|
22.65 kN/m |
Permissible load for loading scenario 6
|
16.99 kN/m |
