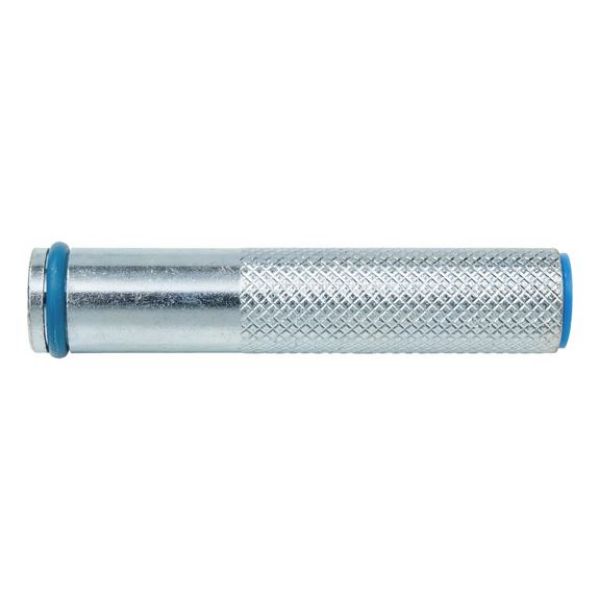

Female thread sleeve WIT

Article No. 09034612

Female thread sleeve WIT galvanised steel ANC-(IG)-(A2K)-M12X80

€2.56 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

For bonded anchors in masonry. Galvanised steel, unapproved.

Female thread sleeve, not approved for masonry

Notice

Unapproved

For bonded anchors in masonry. Galvanised steel, unapproved.

Female thread sleeve, not approved for masonry

Notice

Unapproved

Instructions

Female thread sleeve WIT, galvanised steel can be used in dry interior rooms

Products specifications

Female thread	12 mm
Length	80 mm
Min./max. required screw-in depth	12-25 mm
Nominal drill-bit diameter sieve sleeve (d 0)	20 mm
Effective anchoring depth, sleeve (h ef)	80 mm
Drill hole depth (h 0)	90 mm
Suitable for sieve sleeve	SH 20 x 85
Material	Steel
Surface	Galvanised
