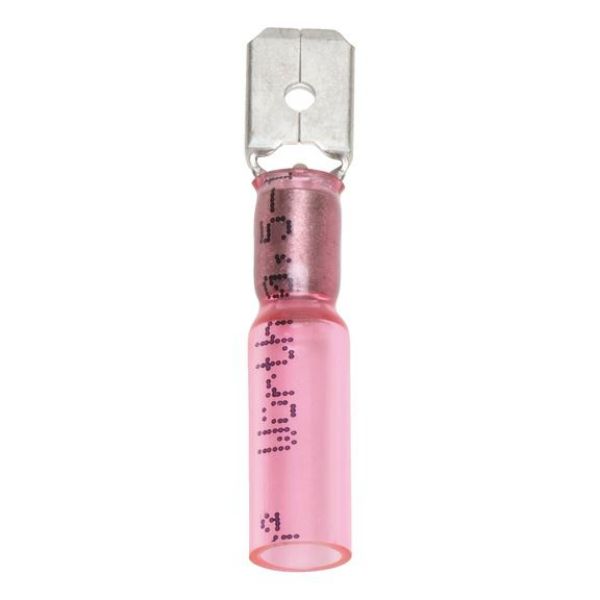

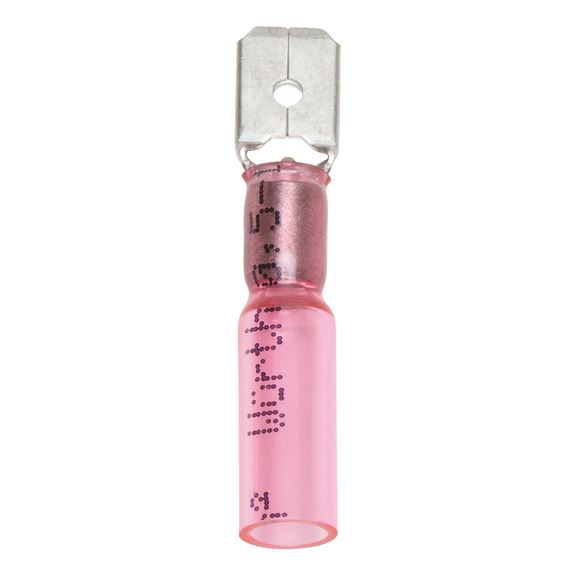

Heat-shrink crimp blade connector

Article No. 0555512110

Blade connector TABCON-HSHRTUBE-RED-(0,5-1,5SMM)

€0.85 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Semi-transparent heat-shrink tubing

Straightforward visual monitoring of the connection

40% faster shrinking process

Saves time

Low shrinking temperature of +300°C

Low risk of damage to connector and cable insulation

Notice

Avoid localised overheating of the heat-shrink tubing.

Proof of Performance

RoHS-compliant

Specification
Application
Technical Information
Documents

Semi-transparent heat-shrink tubing

Straightforward visual monitoring of the connection

40% faster shrinking process

Saves time

Low shrinking temperature of +300°C

Low risk of damage to connector and cable insulation

Notice

Avoid localised overheating of the heat-shrink tubing.

Proof of Performance

RoHS-compliant

Application area

Dust-proof and damp-proof connections. Good to excellent resistance against petrol, battery acid, diesel, engine oil, anti-freeze, brake fluid, 5% saline solution, isopropyl alcohol.

Products specifications

Min./max. wire cross section	0.5-1.5 mm²
Colour	Red
Nominal size of flat plug/push connector/blade connector	6.3 x 0.8 mm
Dielectric strength	30 kV/mm
IP protection class	IP 67
Min./max. temperature conditions	-55 to 125 °C
Min. shrinkage temperature	300 °C

Würth Catalogue(2)

Catalogue page as PDF 1

Flip catalog

Products specifications

Min./max. wire cross section	0.5-1.5 mm²
Colour	Red
Nominal size of flat plug/push connector/blade connector	6.3 x 0.8 mm
Dielectric strength	30 kV/mm
IP protection class	IP 67
Min./max. temperature conditions	-55 to 125 °C
Min. shrinkage temperature	300 °C
