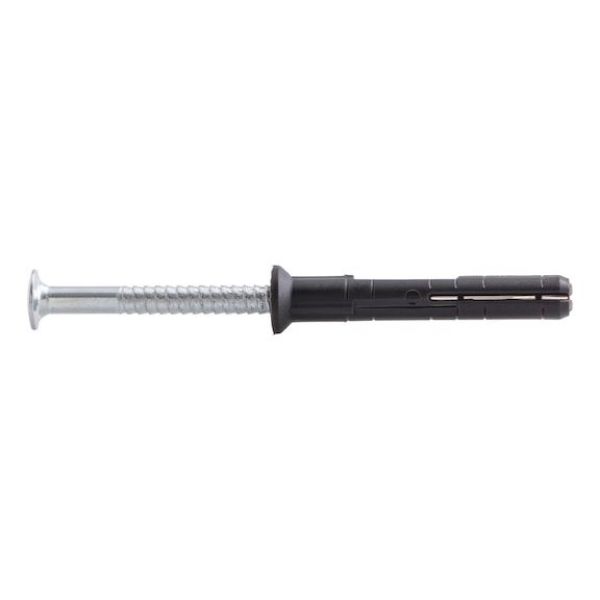

Nail anchor SHARK® Hammer type SK

Article No. 590631640

SHARK HAMMER nail anch. cntrsnk cl type SK DWL-(SHARK HAMMER)-SK-PLA-NL-10-6X40 ZEBRA

€14.51 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

With fast assembly and a proven performance, this product offers an all-round solution for fastening light loads using push-through installation

European Technical Assessment ETA-19/0182: SHARK^®Hammer sizes 6 and 8 for multiple use in concrete for non-structural applications
European Technical Assessment ETA-19/0182: SHARK^®Hammer 8 for multiple use in masonry for non-structural applications (exception: dimensions M8 x 45)

With fast assembly and a proven performance, this product offers an all-round solution for fastening light loads using push-through installation

European Technical Assessment ETA-19/0182: SHARK^®Hammer sizes 6 and 8 for multiple use in concrete for non-structural applications
European Technical Assessment ETA-19/0182: SHARK^®Hammer 8 for multiple use in masonry for non-structural applications (exception: dimensions M8 x 45)

Application area

All fastenings in interior construction as well as the wood, metal, plumbing, sanitation and electrical industries. For light loads.

For example: Securing squared timber, laths, thin metal sheets and all components for recessed installation

Products specifications

Anchor diameter	6.5 mm
Anchor length (l)	40 mm
Max. attachment height (t fix)	10 mm
Embedding depth (h nom)	30 mm
Nominal drill-bit diameter (d 0)	6 mm
Drill hole depth (h 1)	35 mm
Hole diameter in component (d f)	6.5 mm
Material of the nail	Steel
Surface	Zinc plated
Internal drive	Z2

Certificates/Documents(3)

Products specifications

Anchor diameter	6.5 mm
Anchor length (l)	40 mm
Max. attachment height (t fix)	10 mm
Embedding depth (h nom)	30 mm
Nominal drill-bit diameter (d 0)	6 mm
Drill hole depth (h 1)	35 mm
Hole diameter in component (d f)	6.5 mm
Material of the nail	Steel
Surface	Zinc plated
Internal drive	Z2
