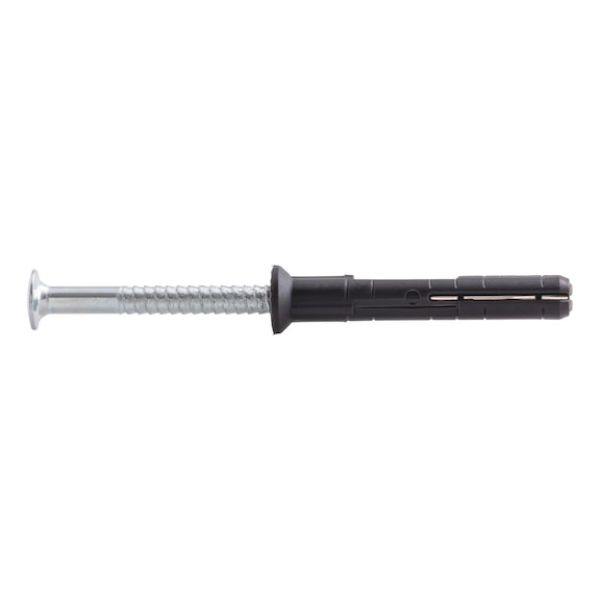

Nail anchor SHARK® Hammer TYPE SK

Article No. 590631880
SHARK HAMMER nail anch. cntrsnk cl type SK DWL-(SHARK HAMMER)-SK-PLA-NL-40-8X80 ZEBRA-SHARK
€0.35 inc. VAT price per 1 PCS
AVAILABLE
*
+ -
With fast assembly and proven performance, this product offers an all-round solution for fastening light loads using in-place installation. Wall plug body with countersunk, nail made of zinc-plated steel

With fast assembly and proven performance, this product offers an all-round solution for fastening light loads using in-place installation. Wall plug body with countersunk, nail made of zinc-plated steel

  • Quick, cost-effective installation
  • Anchor and nail screw are pre-assembled, no need to search for a suitable screw
  • Suitable for in-place installation
  • Can be removed via drive in screw head
  • Defined integrated hammer-in stop prevents premature expansion
  • Resistant to UV rays
  • Rot-resistant (plastic anchor made of high-quality polyamide)
  • Temperature-resistant from -40°C to +100°C
  • For countersunk and protruding finish
  • Countersunk head design countersinks itself automatically in soft wood
  • Halogen-free
Proof of Performance
  • European Technical Assessment ETA-19/0182: SHARK® Hammer sizes 6 and 8 for multiple use in concrete for non-structural applications
  • European Technical Assessment ETA-19/0182: SHARK® Hammer 8 for multiple use in masonry for non-structural applications (exception: dimensions M8 x 45)
Performance dataCharacteristic values
Anchor diameter [mm] 6 8
Permissible tensile load Concrete B25 or C20/25 Fperm [kN] 0,2 0,2
Sand-lime brick KS 12 0,12
Hollow sand-lime brick KSL 12 0,075
Tightening torque (THREAD type only) Tinst [Nm] 4 4
Drill hole depth h1 ≥ [mm] 35 45
Setting depth hnom ≥ [mm] 30 40
Thread dia. (THREAD type only) dthr [mm] M6 M8
Thread length (THREAD type only) Ithr [mm] 6 9
Nom. drill dia. d0 [mm] 6 8
Hole dia. in comp. df [mm] 6,5 8,5
Application area
Square timbers

Drill hole

Remove drill cuttings

Anchor sleeve temperature ≥ 0°C

Temperature in base material ≥ 0°C

Insert anchor through the component into the drilled hole

Knock in expansion nail until flush



  • European Technical Assessment ETA-19/0182: SHARK® Hammer sizes 6 and 8 for multiple use in concrete for non-structural applications
  • European Technical Assessment ETA-19/0182: SHARK® Hammer 8 for multiple use in masonry for non-structural applications (exception: dimensions M8 x 45)
With fast assembly and proven performance, this product offers an all-round solution for fastening light loads using in-place installation. Wall plug body with countersunk, nail made of zinc-plated steel

With fast assembly and proven performance, this product offers an all-round solution for fastening light loads using in-place installation. Wall plug body with countersunk, nail made of zinc-plated steel

  • Quick, cost-effective installation
  • Anchor and nail screw are pre-assembled, no need to search for a suitable screw
  • Suitable for in-place installation
  • Can be removed via drive in screw head
  • Defined integrated hammer-in stop prevents premature expansion
  • Resistant to UV rays
  • Rot-resistant (plastic anchor made of high-quality polyamide)
  • Temperature-resistant from -40°C to +100°C
  • For countersunk and protruding finish
  • Countersunk head design countersinks itself automatically in soft wood
  • Halogen-free
Proof of Performance
  • European Technical Assessment ETA-19/0182: SHARK® Hammer sizes 6 and 8 for multiple use in concrete for non-structural applications
  • European Technical Assessment ETA-19/0182: SHARK® Hammer 8 for multiple use in masonry for non-structural applications (exception: dimensions M8 x 45)
Performance dataCharacteristic values
Anchor diameter [mm] 6 8
Permissible tensile load Concrete B25 or C20/25 Fperm [kN] 0,2 0,2
Sand-lime brick KS 12 0,12
Hollow sand-lime brick KSL 12 0,075
Tightening torque (THREAD type only) Tinst [Nm] 4 4
Drill hole depth h1 ≥ [mm] 35 45
Setting depth hnom ≥ [mm] 30 40
Thread dia. (THREAD type only) dthr [mm] M6 M8
Thread length (THREAD type only) Ithr [mm] 6 9
Nom. drill dia. d0 [mm] 6 8
Hole dia. in comp. df [mm] 6,5 8,5
Application area
Square timbers

Drill hole

Remove drill cuttings

Anchor sleeve temperature ≥ 0°C

Temperature in base material ≥ 0°C

Insert anchor through the component into the drilled hole

Knock in expansion nail until flush



  • European Technical Assessment ETA-19/0182: SHARK® Hammer sizes 6 and 8 for multiple use in concrete for non-structural applications
  • European Technical Assessment ETA-19/0182: SHARK® Hammer 8 for multiple use in masonry for non-structural applications (exception: dimensions M8 x 45)
Application area
  • Can be used in concrete and masonry

  • For any light-load fittings in interior finishing as well as wood, metal, plumbing, sanitary and electrical applications, e.g. securing squared timber, laths, thin metal sheets and all components for recessed installation
Products specifications
Anchor diameter 8 mm
Anchor length (l) 80 mm
Max. attachment height (t fix) 40 mm
Embedding depth (h nom) 40 mm
Nominal drill-bit diameter (d 0) 8 mm
Drill hole depth (h 1) 45 mm
Hole diameter in component (d f) 8.5 mm
Material of nail Steel
Surface Zinc plated
Internal drive Z3

Würth Catalogue(2)

Catalogue page as PDF 1

Flip Book

Certificates/Documents

 |

 |

Products specifications
Anchor diameter 8 mm
Anchor length (l) 80 mm
Max. attachment height (t fix) 40 mm
Embedding depth (h nom) 40 mm
Nominal drill-bit diameter (d 0) 8 mm
Drill hole depth (h 1) 45 mm
Hole diameter in component (d f) 8.5 mm
Material of nail Steel
Surface Zinc plated
Internal drive Z3
