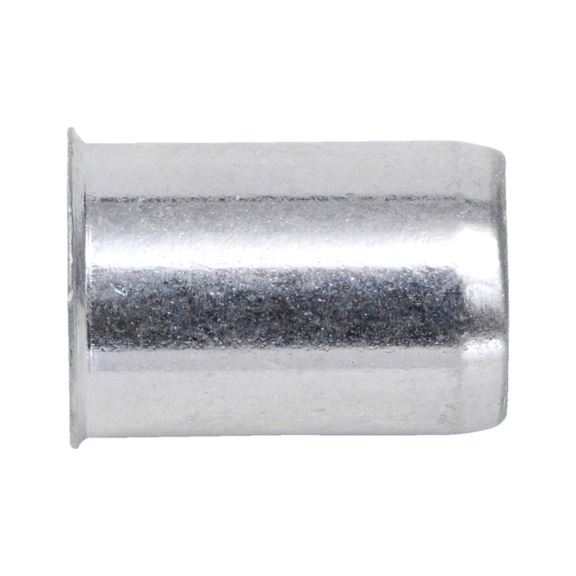

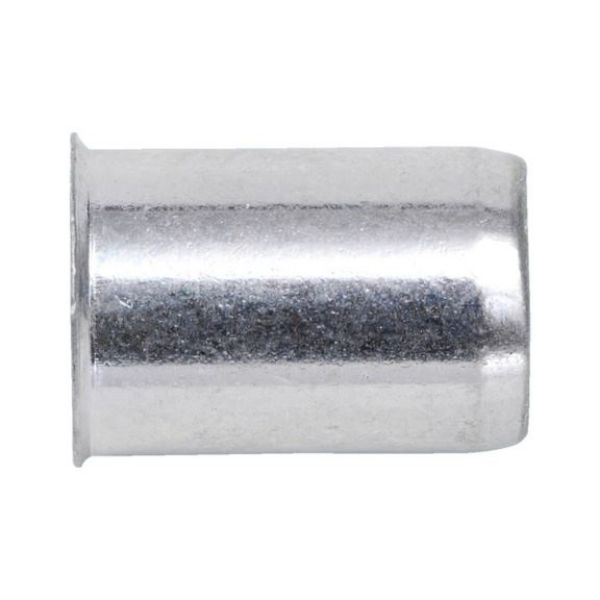

Rivet nut, small countersunk head

Article No. 091730

Zinc-plated steel, small countersunk head NUT-RIV-CS-(A2B)-(0,3-1,5)-9,0X4,7-M3 ZEBRA

€20.06 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Galvanised steel, blue passivated (A2B) with small countersunk head

Rivet nuts can be used as riveted and screwed connections.

As a result, they offer both secure connections and the ability to easily mount additional components using common screws.

Installation from one side, making it suitable for closed profiles as well

Simple, fast and mostly automatic installation

No countersinking of drilled holes necessary

Consistently high installation quality

Twist-proof connection with load-bearing thread

Improved efficiency thanks to faster working, secure connections and increased quality

Notice

The specified extraction values are guideline values, and the information may vary for this reason, depending on the workpiece, drilled hole tolerance and roughness of the surface.

Specification
Application
Technical Information
Documents

Galvanised steel, blue passivated (A2B) with small countersunk head

Rivet nuts can be used as riveted and screwed connections.

As a result, they offer both secure connections and the ability to easily mount additional components using common screws.

Installation from one side, making it suitable for closed profiles as well

Simple, fast and mostly automatic installation

No countersinking of drilled holes necessary

Consistently high installation quality

Twist-proof connection with load-bearing thread

Improved efficiency thanks to faster working, secure connections and increased quality

Notice

The specified extraction values are guideline values, and the information may vary for this reason, depending on the workpiece, drilled hole tolerance and roughness of the surface.

Application area

Especially well-suited for achieving high resistance to turning in soft materials, such as aluminium, wood, plastic, asbestos etc.

Products specifications

Material	Steel
Surface	Galvanised
Thread type x nominal diameter (D)	M3
Head diameter (d₁)	5.3 mm
Outer diameter (d₂)	4.7 mm
Length (l₁)	19 mm
Head height (k₁)	0.40 mm
Min./max. grip range (s₁)	0.3-1.5 mm
Head type	Countersunk head
Drill hole diameter	4.8 mm
Tensile fracture load	4000 N
Shear-fracture load	1500 N
Max. tightening torque	1.2 Nm
