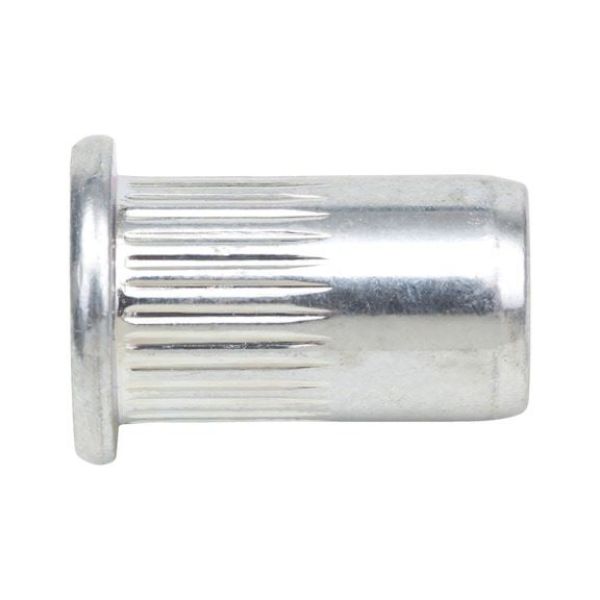

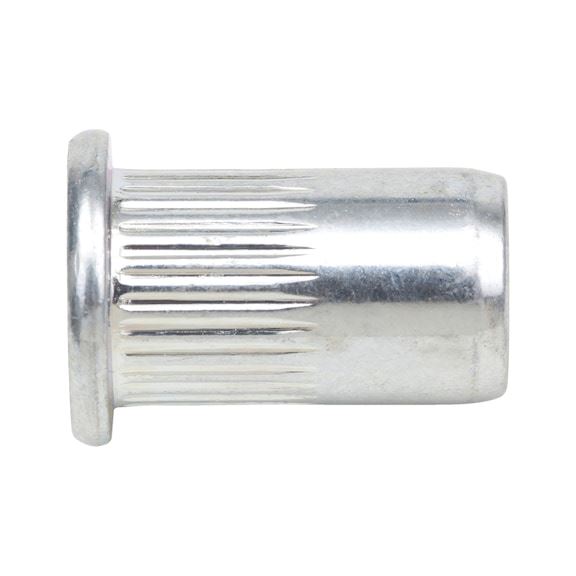

Rivet nut with flat head and knurled shank

Article No. 09422006

Flat head A2 stainless steel knurled shank NUT-RIV-MHD-(3,0-5,5)-A2-18,5-M6

€0.65 inc. VAT price per 1 PCS

Available on Order
Price may vary

Qty:

+ -

A2 stainless steel

A2 stainless steel

Products specifications

Thread type x nominal diameter (D)	M6
Head diameter (d₁)	12 mm
Outer diameter (d₂)	8.9 mm
Length (l₁)	18.5 mm
Head height (k₁)	1.6 mm
Min./max. grip range (s₁)	3.0-5.5 mm
Material	Stainless steel A2
Head type	Dome head
Drill hole diameter	9 mm
Tensile fracture load	20580 N
Shear-fracture load	5630 N
Max. tightening torque	22.2 Nm
