Securing sleeve

Article No. 09050890

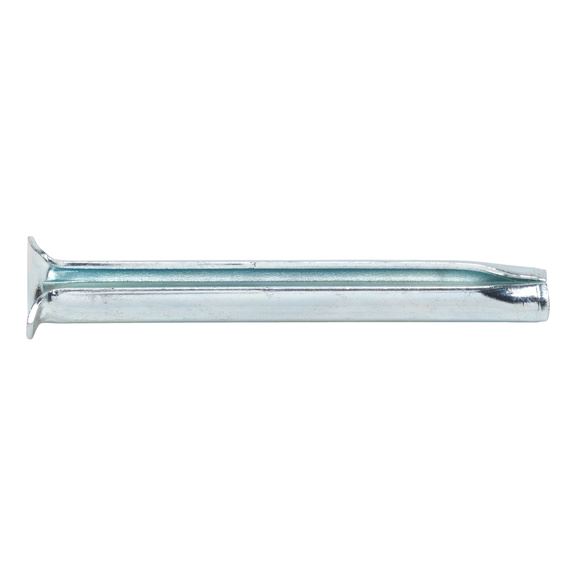

Securing sleeve steel galvanised DWL-(A0K)-50-8X90

€0.32 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

For quick and economic mounting of light attachment parts in all solid materials, galv. steel

For quick and economic mounting of light attachment parts in all solid materials, galv. steel

Application area

For secondary attachments in interior fittings

For temporary secondary outdoor attachments, e.g. construction safeguards

Can be used in concrete ≥ B25, solid brick, solid sand-lime brick, hard natural stone

Products specifications

Anchor diameter	8 mm
Length (l)	90 mm
Max. attachment height (d a) (da)	50 mm
Embedding depth (h s)	40 mm
Nominal drill-bit diameter (d 0)	8 mm
Edge clearance (a r)	50 mm
Centre-to-centre distance (a)	80 mm
Minimum component thickness (d)	80 mm
Drill hole depth (t)	45 mm
Hole diameter in component (d Bau)	8.8 mm

Würth Catalogue(2)

Catalogue page as PDF 1 | 2

Products specifications

Anchor diameter	8 mm
Length (l)	90 mm
Max. attachment height (d a) (da)	50 mm
Embedding depth (h s)	40 mm
Nominal drill-bit diameter (d 0)	8 mm
Edge clearance (a r)	50 mm
Centre-to-centre distance (a)	80 mm
Minimum component thickness (d)	80 mm
Drill hole depth (t)	45 mm
Hole diameter in component (d Bau)	8.8 mm
