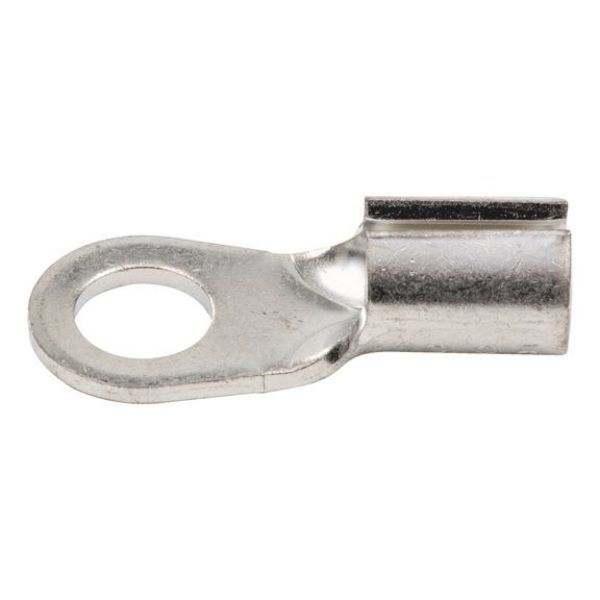

Solder cable lug - CBLLUG-SLDR-DIN46211-M6-(6-16SMM)4,3

Solder cable lug

Article No. 05579219

Soldered cable lug DIN 46211 CBLLUG-SLDR-DIN46211-M6-(6-16SMM)4,3

€0.47 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 46211

Specification
Technical Information
Documents

DIN 46211

Products specifications

Min./max. wire cross section	6.0-16.0 mm²
Flange hole	M6
Min./max. grommet	6.0-4.3 mm
Material thickness	1.20 mm
Length x width	26.5 x 11.0 mm
Material	Brass
Surface	Tin plated
Min. wire cross section	6.0 mm²
Max. wire cross section	16.0 mm²
Min. grommet	6 mm
Max. grommet	4.3 mm
Length	26.5 mm
Width	11 mm

Würth Catalogue(2)

Catalogue page as PDF 1

Products specifications

Min./max. wire cross section	6.0-16.0 mm²
Flange hole	M6
Min./max. grommet	6.0-4.3 mm
Material thickness	1.20 mm
Length x width	26.5 x 11.0 mm
Material	Brass
Surface	Tin plated
Min. wire cross section	6.0 mm²
Max. wire cross section	16.0 mm²
Min. grommet	6 mm
Max. grommet	4.3 mm
Length	26.5 mm
Width	11 mm
