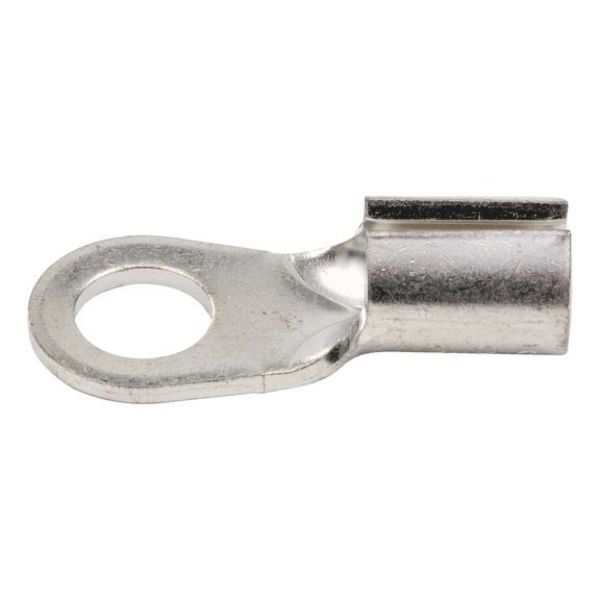

Solder cable lug - CBLLUG-SLDR-DIN46211-M8-(6-16SMM)4,3

Solder cable lug

Article No. 05579220

Soldered cable lug DIN 46211 CBLLUG-SLDR-DIN46211-M8-(6-16SMM)4,3

€0.65 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 46211

Specification
Technical Information
Documents

DIN 46211

Products specifications

Min./max. wire cross section	6.0-16.0 mm²
Flange hole	M8
Min./max. grommet	8.0-4.3 mm
Material thickness	1.20 mm
Length x width	31.5 x 15.0 mm
Material	Brass
Surface	Tin plated
Min. wire cross section	6.0 mm²
Max. wire cross section	16.0 mm²
Min. grommet	8 mm
Max. grommet	4.3 mm
Length	31.5 mm
Width	15 mm

Würth Catalogue(2)

Catalogue page as PDF 1

Products specifications

Min./max. wire cross section	6.0-16.0 mm²
Flange hole	M8
Min./max. grommet	8.0-4.3 mm
Material thickness	1.20 mm
Length x width	31.5 x 15.0 mm
Material	Brass
Surface	Tin plated
Min. wire cross section	6.0 mm²
Max. wire cross section	16.0 mm²
Min. grommet	8 mm
Max. grommet	4.3 mm
Length	31.5 mm
Width	15 mm
