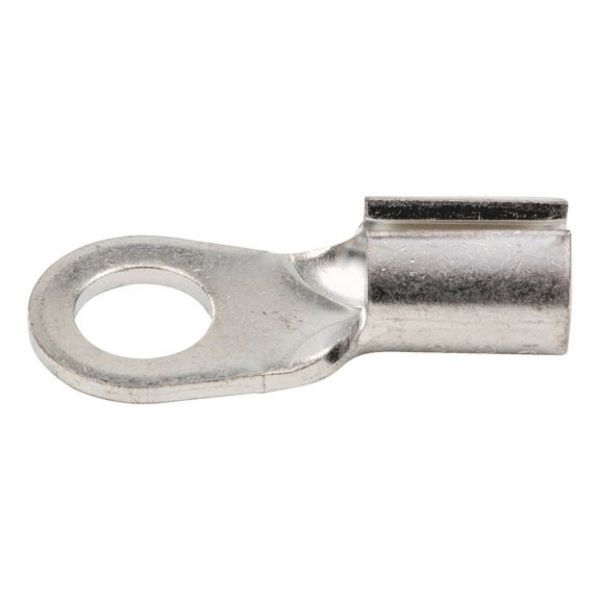

Solder cable lug - CBLLUG-SLDR-DIN46211-M12-(16-35SMM)6,8

Solder cable lug

Article No. 05579230

Soldered cable lug DIN 46211 CBLLUG-SLDR-DIN46211-M12-(16-35SMM)6,8

€1.31 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 46211

Specification
Technical Information
Documents

DIN 46211

Products specifications

Min./max. wire cross section	16.0-35.0 mm²
Flange hole	M12
Min./max. grommet	12.0-6.8 mm
Material thickness	1.80 mm
Length x width	46.0 x 22.0 mm
Material	Brass
Surface	Tin-plated
Min. wire cross section	16.0 mm²
Max. wire cross section	35.0 mm²
Min. grommet	12 mm
Max. grommet	6.8 mm
Length	46 mm
Width	22 mm

Würth Catalogue(2)

Catalogue page as PDF 1

Products specifications

Min./max. wire cross section	16.0-35.0 mm²
Flange hole	M12
Min./max. grommet	12.0-6.8 mm
Material thickness	1.80 mm
Length x width	46.0 x 22.0 mm
Material	Brass
Surface	Tin-plated
Min. wire cross section	16.0 mm²
Max. wire cross section	35.0 mm²
Min. grommet	12 mm
Max. grommet	6.8 mm
Length	46 mm
Width	22 mm
