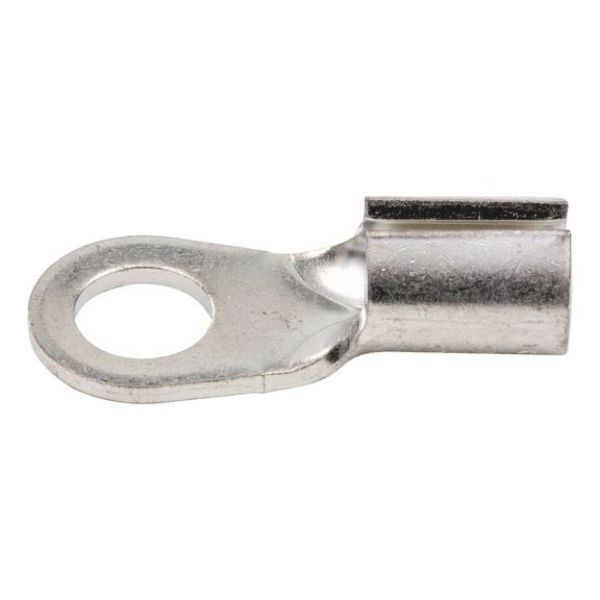

Solder cable lug - CBLLUG-SLDR-DIN46211-M10-(10-25SMM)5,4

Solder cable lug

Article No. 05579225

Soldered cable lug DIN 46211 CBLLUG-SLDR-DIN46211-M10-(10-25SMM)5,4

€0.73 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 46211

Specification
Technical Information
Documents

DIN 46211

Products specifications

Min./max. wire cross section	10.0-25.0 mm²
Flange hole	M10
Min./max. grommet	10.0-5.4 mm
Material thickness	1.50 mm
Length x width	38.4 x 19.0 mm
Material	Brass
Surface	Tin-plated
Min. wire cross section	10.0 mm²
Max. wire cross section	25.0 mm²
Min. grommet	10 mm
Max. grommet	5.4 mm
Length	38.4 mm
Width	19 mm

Würth Catalogue(2)

Catalogue page as PDF 1

Products specifications

Min./max. wire cross section	10.0-25.0 mm²
Flange hole	M10
Min./max. grommet	10.0-5.4 mm
Material thickness	1.50 mm
Length x width	38.4 x 19.0 mm
Material	Brass
Surface	Tin-plated
Min. wire cross section	10.0 mm²
Max. wire cross section	25.0 mm²
Min. grommet	10 mm
Max. grommet	5.4 mm
Length	38.4 mm
Width	19 mm
