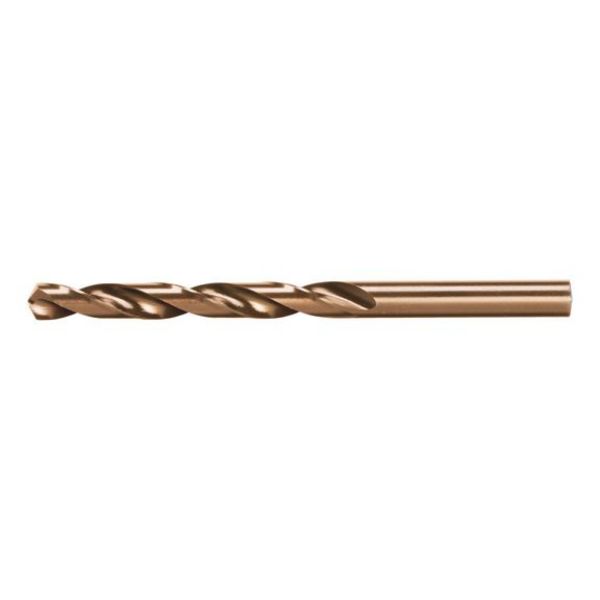

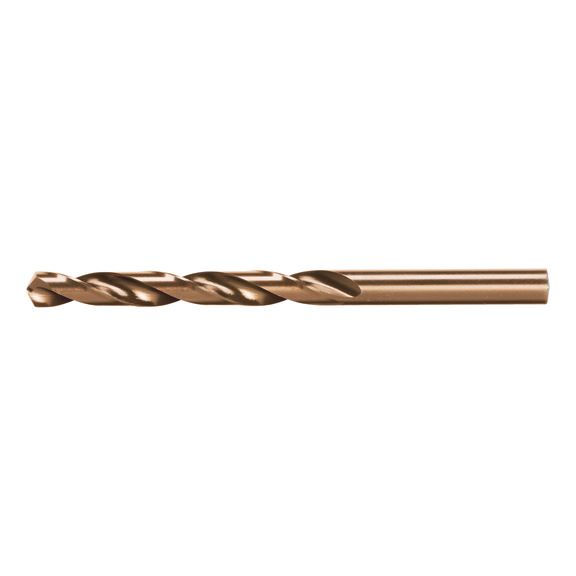

Twist drill bit HSCo DIN 338 type RN bronze tipped

Article No. 0635010700

Twist drill bit HSCo DIN 338 RN bronze sharpnd DRL-TWST-MET-DIN338-HSCO-BRZ-SHRP-D7,0

€8.00 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

The affordable, robust assembly drill bit for machining stainless steel and heat-resistant steels. Also suitable for general, broad applications in steel up to 1000 N/mm² strength, as well as in cast iron.

Self-centring, extremely robust, quiet drilling and high degree of break resistance

Combination of form A and form C point thinning

Ideal for construction site and assembly applications

Robust and durable design

Notice

See overview tables for drill bit/material assignments

Specification
Technical Information
Documents

Self-centring, extremely robust, quiet drilling and high degree of break resistance

Combination of form A and form C point thinning

Ideal for construction site and assembly applications

Robust and durable design

Notice

See overview tables for drill bit/material assignments

Products specifications

Suitable for machine type	Cordless screwdrivers<br>Drill<br>Pedestal drilling machine
Material to be processed	Stainless steel<br>Steel<br>Cast iron
Quality	Würth-Standard
Standard / drilling depth	DIN 338 / 5xD
Diameter (Ø)	7 mm
Length (L1)	109 mm
Chip flute length (l2)	69 mm
Shank style	Cylindrical
Surface	Bronze
Cutting material	HSCo
Type	RN
Angle of the tip	118 Degree
Service life (points system)	3 of 4 points
Drilling speed (point system)	2 of 4 points
Bore hole quality (point system) ( )	2 of 4 points
Versatility (points system)	3 of 4 points
Drilling behaviour (point system)	3 of 4 points
Suitable for drill (points system)	2 of 4 points
Suitable for cordless drills (points system)	2 of 4 points
Suitable for upright drilling machine (points system)	1 of 4 points
Self-centring	Yes
Suitable for tensile strength up to	1000 N/mm²
Material sub-group	General structural steels<br>Non-alloyed tempering steels<br>Nitriding steels<br>Tool steels<br>High-speed steels<br>Cast iron<br>Ductile iron<br>Malleable cast iron<br>White cast iron<br>Stainless steels, martensitic<br>Stainless steels, sulphurated<br>Stainless steels, austenitic<br>Spring steels<br>Copper, low-alloyed<br>Bronze, long-chipping<br>Bronze, short-chipping<br>Brass, long-chipping<br>Brass, short-chipping<br>Plastics, duroplastic<br>Plastics, thermoplastic
