Twist drill bit HSS DIN 338 type RN 130° - DRL-TWST-MET-DIN338-HSS-D8,0MM

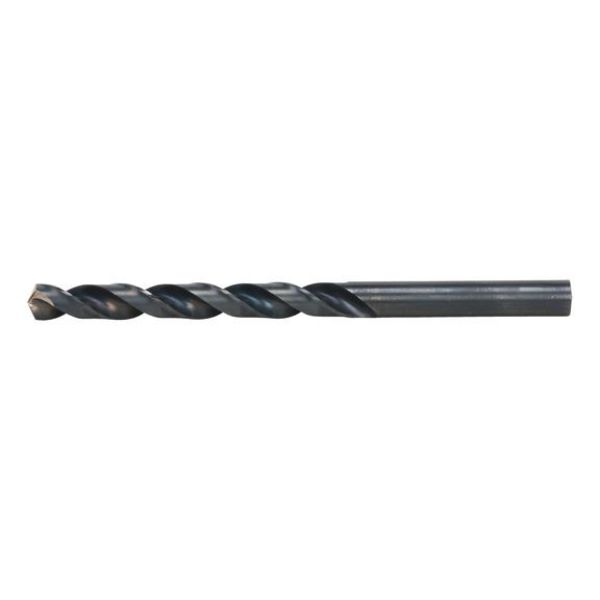

Twist drill bit HSS DIN 338 type RN 130°

Article No. 0624000800

Twist drill HSS DIN 338 type RN 130-degree DRL-TWST-MET-DIN338-HSS-D8,0MM ZEBRA

€5.07 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Steel precision drill for general, broad applications in steel up to 850 N/mm² strength and cast iron.

20% less infeed force compared to conventional drills, with faster work progress and less expenditure of effort

Optimised cross thinning

Highly accurate tapping without centring, even on curved surfaces

Optimum cross-grinding

Ideal for producing core drill holes

Highly precise tip grinding for precise drilling

Excellent adhesion of cooling lubricants and a reduced tendency towards build-up

Vaporised surface

Notice

The Ø 13.0 mm drill shank is reduced to Ø 12.7 mm
For drill bit/material assignments, see overview tables

Specification
Technical Information
Documents

Steel precision drill for general, broad applications in steel up to 850 N/mm² strength and cast iron.

20% less infeed force compared to conventional drills, with faster work progress and less expenditure of effort

Optimised cross thinning

Highly accurate tapping without centring, even on curved surfaces

Optimum cross-grinding

Ideal for producing core drill holes

Highly precise tip grinding for precise drilling

Excellent adhesion of cooling lubricants and a reduced tendency towards build-up

Vaporised surface

Notice

The Ø 13.0 mm drill shank is reduced to Ø 12.7 mm
For drill bit/material assignments, see overview tables

Products specifications

Suitable for machine type	Drill<br>Cordless screwdrivers<br>Pedestal drilling machine
Material to be processed	Steel<br>Cast iron
Quality	ZEBRA-Premium
Standard / drilling depth	DIN 338 / 5xD
Diameter (Ø)	8 mm
Shank style	Cylindrical
Material sub-group	General structural steels<br>Non-alloyed tempering steels<br>Cast iron<br>Ductile iron<br>Malleable cast iron<br>Magnesium alloys<br>Copper, low-alloyed<br>Brass, short-chipping<br>Brass, long-chipping<br>Plastics, duroplastic<br>Plastics, thermoplastic
Surface	Vaporised
Cutting material	HSS
Angle of the tip	130 Degree
Suitable for drill (points system)	3 of 4 points
Length	117 mm
Suitable for cordless drills (points system)	3 of 4 points
Suitable for upright drilling machine (points system)	3 of 4 points
Suitable for milling-drilling centre (points system)	1 of 4 points
Service life (points system)	3 of 4 points
Drilling speed (point system)	3 of 4 points
Bore hole quality (point system) ( )	4 of 4 points
Versatility (points system)	2 of 4 points
Drilling behaviour (point system)	3 of 4 points
Chip flute length	75 mm
Self-centring	Yes
Max. drilling depth (D)	5xD
Drilling depth	40 mm

Würth Catalogue(2)

Catalogue page as PDF 1

Products specifications

Suitable for machine type	Drill<br>Cordless screwdrivers<br>Pedestal drilling machine
Material to be processed	Steel<br>Cast iron
Quality	ZEBRA-Premium
Standard / drilling depth	DIN 338 / 5xD
Diameter (Ø)	8 mm
Shank style	Cylindrical
Material sub-group	General structural steels<br>Non-alloyed tempering steels<br>Cast iron<br>Ductile iron<br>Malleable cast iron<br>Magnesium alloys<br>Copper, low-alloyed<br>Brass, short-chipping<br>Brass, long-chipping<br>Plastics, duroplastic<br>Plastics, thermoplastic
Surface	Vaporised
Cutting material	HSS
Angle of the tip	130 Degree
Suitable for drill (points system)	3 of 4 points
Length	117 mm
Suitable for cordless drills (points system)	3 of 4 points
Suitable for upright drilling machine (points system)	3 of 4 points
Suitable for milling-drilling centre (points system)	1 of 4 points
Service life (points system)	3 of 4 points
Drilling speed (point system)	3 of 4 points
Bore hole quality (point system) ( )	4 of 4 points
Versatility (points system)	2 of 4 points
Drilling behaviour (point system)	3 of 4 points
Chip flute length	75 mm
Self-centring	Yes
Max. drilling depth (D)	5xD
Drilling depth	40 mm
