Twist drill bit HSS DIN 338 type RN 130° - DRL-TWST-MET-DIN338-HSS-D4,2MM

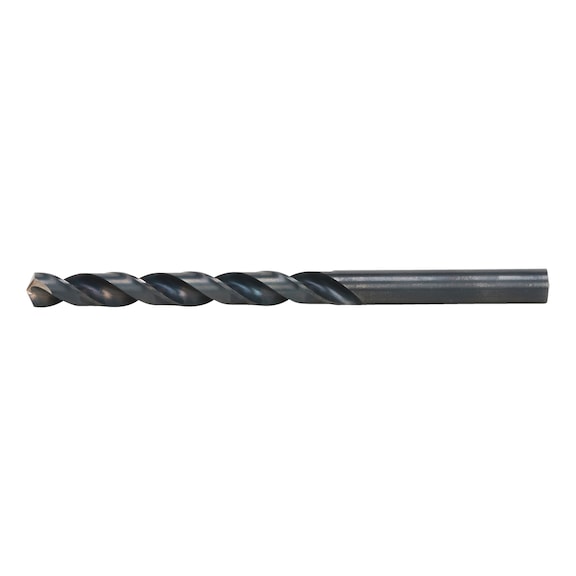

Twist drill bit HSS DIN 338 type RN 130°

Article No. 0624000420

Twist drill HSS DIN 338 type RN 130 degree DRL-TWST-MET-DIN338-HSS-D4,2MM ZEBRA

€1.83 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Steel precision drill for general, broad applications in steel up to 850 N/mm² strength and cast iron.

20 % lower infeed force compared to conventional drill bits as well as quicker progress and a more gentle way of working

Optimised split point design

Precise drilling without centring, even on curved surfaces

Optimised split point

Ideal for core drill holes

Very precise point thinning for precise drill holes

Excellent adhesive properties of cooling lubricants and a reduced tendency towards the build-up of material deposits

Vaporised surface

Notice

The dia. 13.0 mm drill shank is reduced to dia. 12.7 mm

Specification
Technical Information
Documents

Steel precision drill for general, broad applications in steel up to 850 N/mm² strength and cast iron.

20 % lower infeed force compared to conventional drill bits as well as quicker progress and a more gentle way of working

Optimised split point design

Precise drilling without centring, even on curved surfaces

Optimised split point

Ideal for core drill holes

Very precise point thinning for precise drill holes

Excellent adhesive properties of cooling lubricants and a reduced tendency towards the build-up of material deposits

Vaporised surface

Notice

The dia. 13.0 mm drill shank is reduced to dia. 12.7 mm

Products specifications

Suitable for machine type	Drill<br>Cordless screwdrivers<br>Pedestal drilling machine
Material to be processed	Steel<br>Cast iron
Quality	ZEBRA-Premium
Standard / drilling depth	DIN 338 / 5xD
Diameter (Ø)	4.2 mm
Length (l1)	75 mm
Chip flute length (l2)	43 mm
Shank style	Cylindrical
Surface	Vaporised
Cutting material	HSS
Type	RN
Angle of the tip	130 Degree
Service life (points system)	3 of 4 points
Drilling speed (point system)	3 of 4 points
Bore hole quality (point system) ( )	4 of 4 points
Versatility (points system)	2 of 4 points
Drilling behaviour (point system)	3 of 4 points
Suitable for drill (points system)	3 of 4 points
Suitable for cordless drills (points system)	3 of 4 points
Suitable for upright drilling machine (points system)	3 of 4 points
Suitable for milling-drilling centre (points system)	1 of 4 points
Self-centring	Yes
Suitable for tensile strength up to	850 N/mm²
Material of sub-group	General structural steels<br>Non-alloyed tempering steels<br>Cast iron<br>Ductile iron<br>Malleable cast iron<br>Magnesium alloys<br>Copper, low-alloyed<br>Brass, short-chipping<br>Brass, long-chipping<br>Plastics, thermoset<br>Plastics, thermoplastic

Würth Catalogue (2)

Catalogue page as PDF 1

Certificates/ Documents (1)

Marketing info 1

Products specifications

Suitable for machine type	Drill<br>Cordless screwdrivers<br>Pedestal drilling machine
Material to be processed	Steel<br>Cast iron
Quality	ZEBRA-Premium
Standard / drilling depth	DIN 338 / 5xD
Diameter (Ø)	4.2 mm
Length (l1)	75 mm
Chip flute length (l2)	43 mm
Shank style	Cylindrical
Surface	Vaporised
Cutting material	HSS
Type	RN
Angle of the tip	130 Degree
Service life (points system)	3 of 4 points
Drilling speed (point system)	3 of 4 points
Bore hole quality (point system) ( )	4 of 4 points
Versatility (points system)	2 of 4 points
Drilling behaviour (point system)	3 of 4 points
Suitable for drill (points system)	3 of 4 points
Suitable for cordless drills (points system)	3 of 4 points
Suitable for upright drilling machine (points system)	3 of 4 points
Suitable for milling-drilling centre (points system)	1 of 4 points
Self-centring	Yes
Suitable for tensile strength up to	850 N/mm²
Material of sub-group	General structural steels<br>Non-alloyed tempering steels<br>Cast iron<br>Ductile iron<br>Malleable cast iron<br>Magnesium alloys<br>Copper, low-alloyed<br>Brass, short-chipping<br>Brass, long-chipping<br>Plastics, thermoset<br>Plastics, thermoplastic
