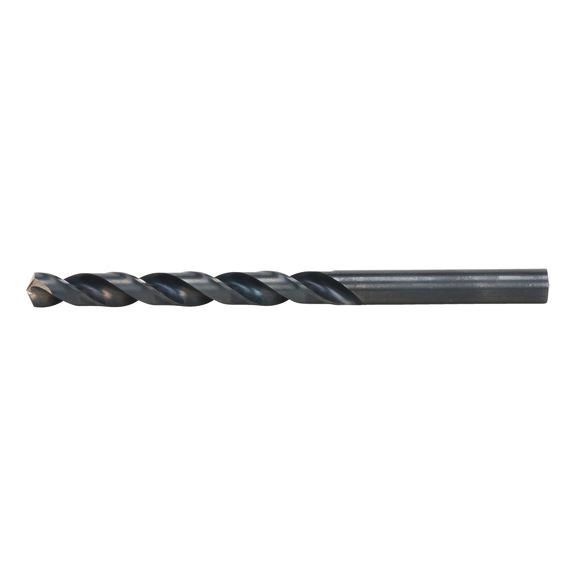

Twist drill bit HSS DIN 338 type RN 130°

Article No. 0624000600
Twist drill HSS DIN 338 type RN 130-degree DRL-TWST-MET-DIN338-HSS-D6,0MM ZEBRA
€2.83 inc. VAT price per 1 PCS
AVAILABLE
*
+ -
Steel precision drill for general, broad applications in steel up to 850 N/mm² strength and cast iron.

20% less infeed force compared to conventional drills, with faster work progress and less expenditure of effort

Optimised cross thinning

Highly accurate tapping without centring, even on curved surfaces

Optimum cross-grinding

Ideal for producing core drill holes

Highly precise tip grinding for precise drilling

Excellent adhesion of cooling lubricants and a reduced tendency towards build-up

Vaporised surface

Notice
  • The Ø 13.0 mm drill shank is reduced to Ø 12.7 mm
  • For drill bit/material assignments, see overview tables
Steel precision drill for general, broad applications in steel up to 850 N/mm² strength and cast iron.

20% less infeed force compared to conventional drills, with faster work progress and less expenditure of effort

Optimised cross thinning

Highly accurate tapping without centring, even on curved surfaces

Optimum cross-grinding

Ideal for producing core drill holes

Highly precise tip grinding for precise drilling

Excellent adhesion of cooling lubricants and a reduced tendency towards build-up

Vaporised surface

Notice
  • The Ø 13.0 mm drill shank is reduced to Ø 12.7 mm
  • For drill bit/material assignments, see overview tables
Products specifications
Suitable for machine typeDrill<br>Cordless screwdrivers<br>Pedestal drilling machine
Material to be processedSteel<br>Cast iron
QualityZEBRA-Premium
Standard / drilling depthDIN 338 / 5xD
Diameter (Ø)6 mm
Shank styleCylindrical
Material sub-groupGeneral structural steels<br>Non-alloyed tempering steels<br>Cast iron<br>Ductile iron<br>Malleable cast iron<br>Magnesium alloys<br>Copper, low-alloyed<br>Brass, short-chipping<br>Brass, long-chipping<br>Plastics, duroplastic<br>Plastics, thermoplastic
SurfaceVaporised
Cutting materialHSS
Angle of the tip130 Degree
Suitable for drill (points system)3 of 4 points
Length93 mm
Suitable for cordless drills (points system)3 of 4 points
Suitable for upright drilling machine (points system)3 of 4 points
Suitable for milling-drilling centre (points system)1 of 4 points
Service life (points system)3 of 4 points
Drilling speed (point system)3 of 4 points
Bore hole quality (point system) ( )4 of 4 points
Versatility (points system)2 of 4 points
Drilling behaviour (point system)3 of 4 points
Chip flute length57 mm
Self-centringYes
Max. drilling depth (D)5xD
Drilling depth30 mm

Würth Catalogue(2)

Catalogue page as PDF 1

Flip catalog

Products specifications
Suitable for machine typeDrill<br>Cordless screwdrivers<br>Pedestal drilling machine
Material to be processedSteel<br>Cast iron
QualityZEBRA-Premium
Standard / drilling depthDIN 338 / 5xD
Diameter (Ø)6 mm
Shank styleCylindrical
Material sub-groupGeneral structural steels<br>Non-alloyed tempering steels<br>Cast iron<br>Ductile iron<br>Malleable cast iron<br>Magnesium alloys<br>Copper, low-alloyed<br>Brass, short-chipping<br>Brass, long-chipping<br>Plastics, duroplastic<br>Plastics, thermoplastic
SurfaceVaporised
Cutting materialHSS
Angle of the tip130 Degree
Suitable for drill (points system)3 of 4 points
Length93 mm
Suitable for cordless drills (points system)3 of 4 points
Suitable for upright drilling machine (points system)3 of 4 points
Suitable for milling-drilling centre (points system)1 of 4 points
Service life (points system)3 of 4 points
Drilling speed (point system)3 of 4 points
Bore hole quality (point system) ( )4 of 4 points
Versatility (points system)2 of 4 points
Drilling behaviour (point system)3 of 4 points
Chip flute length57 mm
Self-centringYes
Max. drilling depth (D)5xD
Drilling depth30 mm
