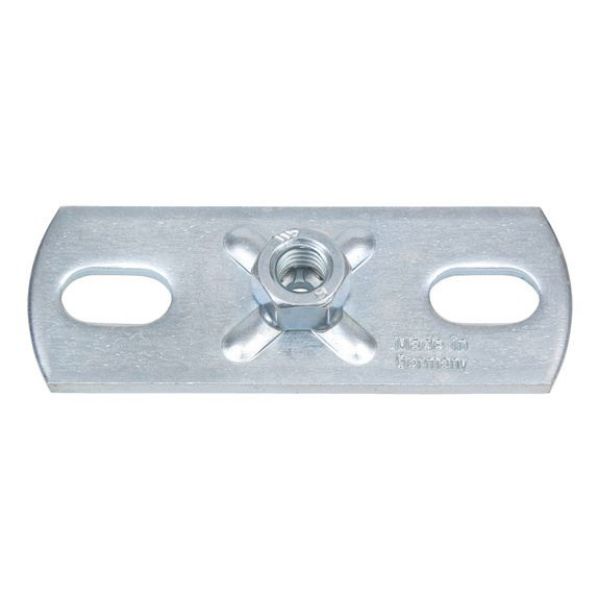

VARIFIX® base plate - C2C

Article No. 0862400100

VARIFIX base plate BSEPLT-80X30-M8 VARIFIX---

€0.92 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Four-point welding for metric thread, inert gas welding for imperial version
Tensile load centred on the base plate, please consider dowel attachment separately.

Cradle to Cradle^®-certified

Upgrading the building using non-hazardous materials
Wider range of application for GreenBuilding and building certification in accordance with LEED^®, BREEAM^® and DGNB

Specification
Application
Technical Information
Documents

Four-point welding for metric thread, inert gas welding for imperial version
Tensile load centred on the base plate, please consider dowel attachment separately.

Cradle to Cradle^®-certified

Upgrading the building using non-hazardous materials
Wider range of application for GreenBuilding and building certification in accordance with LEED^®, BREEAM^® and DGNB

Application area

For providing hold in the domestic engineering sector for mounting pipes, lift tubes, downpipes and for wall spacing installation. For wall, floor and ceiling attachment in conjunction with pipe clamp TIPP Robust.

Products specifications

Connection thread (G)	M8
Length (l)	80 mm
Width (B)	30 mm
Thickness (t)	3 mm
Elongated hole length (LL)	18 mm
Elongated hole width (LB)	9 mm
Hole distance (LA)	54 mm
Recommended tensile load	2.5 kN
Surface	Galvanised
Material	Steel
Product weight (per item)	52.050 g
