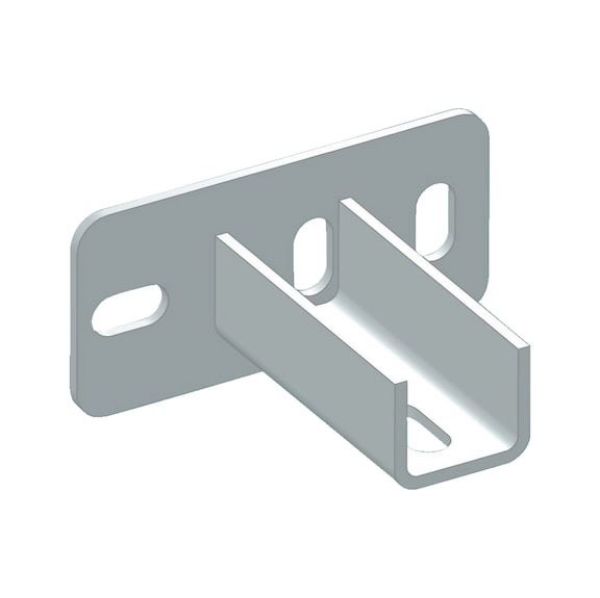

VARIFIX® crosswise profile foot - C2C

Article No. 0862005116

VARIFIX profile foot steel zinc plated cross PRFLFT-PRFL41-CROSS VARIFIX

€11.51 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

For C-assembly rails

Specification
Application
Technical Information
Documents

For C-assembly rails

Application area

For fastening C-assembly rails with heavy loads to: Floors, ceilings, walls, in ducts and channels.

Products specifications

Suitable for mounting rail	41 x 22 mm<br>41 x 41 mm<br>41 x 62 mm<br>41 x 44 mm
Holder plate length (L)	135 mm
Holder plate width (B)	65 mm
Holder plate thickness (t)	6 mm
Profile length (L_p)	120 mm
Profile internal width (B_p)	41.5 mm
Profile height (H_p)	41 mm
Profile thickness (t_p)	4 mm
Elongated hole length (LL₁)	25 mm
Elongated hole length 2 (LL₂)	30 mm
Elongated hole width (LB₁)	13 mm
Elongated hole width 2 (LB₂)	13 mm
Hole distance (LA₁)	100 mm
Hole distance 2 (LA₂)	37 mm
Hole distance 3 (LA₃)	55 mm
Surface	Zinc plated
Weight	805 g
Material	Steel
