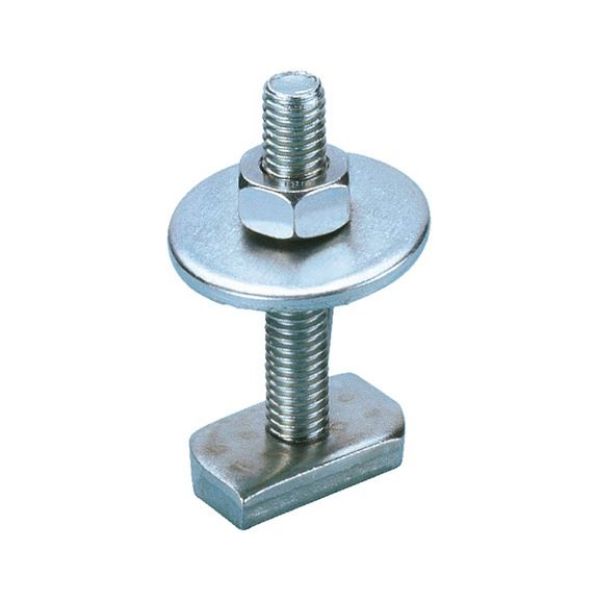

VARIFIX® hammer head fastener Standardfix - C2C

Article No. 0862100002

VARIFIX hammerhead fixing, ST ZN standard fix HAMHDFXNG-COMPLETE-PRFL26/28-M8X30 VARIFIX

€38.94 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

Preassembled with nut and washer, galvanised

Threaded bolt strength class 4.6

Cradle to Cradle^®-certified

Upgrading the building using non-hazardous materials
Wider range of application for GreenBuilding and building certification in accordance with LEED^®, BREEAM^® and DGNB

Preassembled with nut and washer, galvanised

Threaded bolt strength class 4.6

Cradle to Cradle^®-certified

Upgrading the building using non-hazardous materials
Wider range of application for GreenBuilding and building certification in accordance with LEED^®, BREEAM^® and DGNB

Application area

Recommended for direct fastening of pipe clamps

Products specifications

Suitable for mounting rail	26 x 18 mm<br>26 x 26 mm<br>28 x 28 mm
Nominal diameter (G)	8 mm
Washer diameter (d₂)	25 mm
Length (l)	22 mm
Width (B)	13 mm
Thickness (t)	4 mm
Length (hammer head and stud bolt) (L_G)	30 mm
Washer thickness (h₁)	1.5 mm
Surface	Galvanised
Material	Steel
Weight	26 g
Thread type	Metric thread
