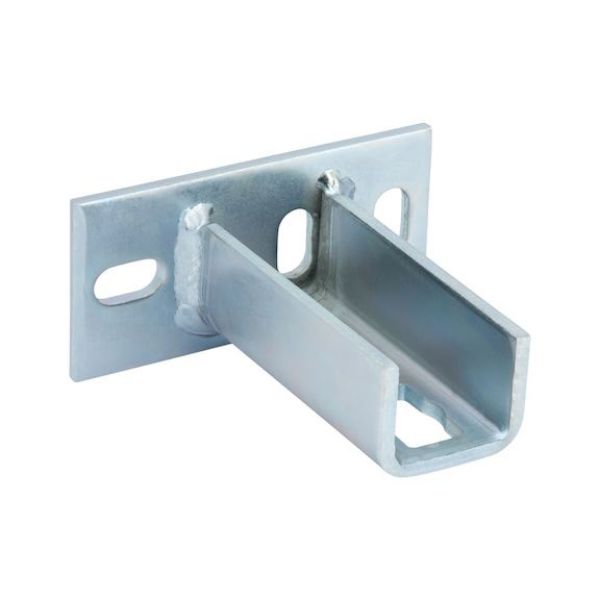

VARIFIX® profile foot transverse for power button system 41

Article No. 0862004011
VARIFIX profile foot for power knob transverse PRFLFT-PRFL41-CROSS-POWERKNOB VARIFIX
€15.22 inc. VAT price per 1 PCS
AVAILABLE
*
+ -
For attaching C-assembly rails in conjunction with VARIFIX® power button

Cradle to Cradle®-certified

  • Upgrading the building using non-hazardous materials
  • Wider range of application for GreenBuilding and building certification in accordance with LEED®, BREEAM® and DGNB
For attaching C-assembly rails in conjunction with VARIFIX® power button

Cradle to Cradle®-certified

  • Upgrading the building using non-hazardous materials
  • Wider range of application for GreenBuilding and building certification in accordance with LEED®, BREEAM® and DGNB
Application area

For attaching C-assembly rails to the floor, wall or ceiling or in ducts. For corner connectors, bracket structures and free structures.

Products specifications
Suitable for mounting rail 41 x 62 mm<br>41 x 41 mm<br>41 x 22 mm<br>41 x 44 mm
Holder plate length (L) 135 mm
Holder plate width (B) 65 mm
Holder plate thickness (t) 6 mm
Profile length (Lp) 120 mm
Profile internal width (Bp) 41.5 mm
Profile height (Hp) 35 mm
Profile thickness (tp) 6 mm
Elongated hole length (LL1) 25 mm
Elongated hole length 2 (LL2) 36 mm
Elongated hole width (LB1) 13.5 mm
Elongated hole width 2 (LB2) 20 mm
Hole distance (LA1) 100 mm
Hole distance 2 (LA2) 52 mm
Hole distance 3 (LA3) 54 mm
Surface Zinc plated
Weight 780 g
Material Structural steel, 1.0037 previously S235 JR

Würth Catalogue(2)

Catalogue page as PDF 1

Flip catalog

Products specifications
Suitable for mounting rail 41 x 62 mm<br>41 x 41 mm<br>41 x 22 mm<br>41 x 44 mm
Holder plate length (L) 135 mm
Holder plate width (B) 65 mm
Holder plate thickness (t) 6 mm
Profile length (Lp) 120 mm
Profile internal width (Bp) 41.5 mm
Profile height (Hp) 35 mm
Profile thickness (tp) 6 mm
Elongated hole length (LL1) 25 mm
Elongated hole length 2 (LL2) 36 mm
Elongated hole width (LB1) 13.5 mm
Elongated hole width 2 (LB2) 20 mm
Hole distance (LA1) 100 mm
Hole distance 2 (LA2) 52 mm
Hole distance 3 (LA3) 54 mm
Surface Zinc plated
Weight 780 g
Material Structural steel, 1.0037 previously S235 JR
