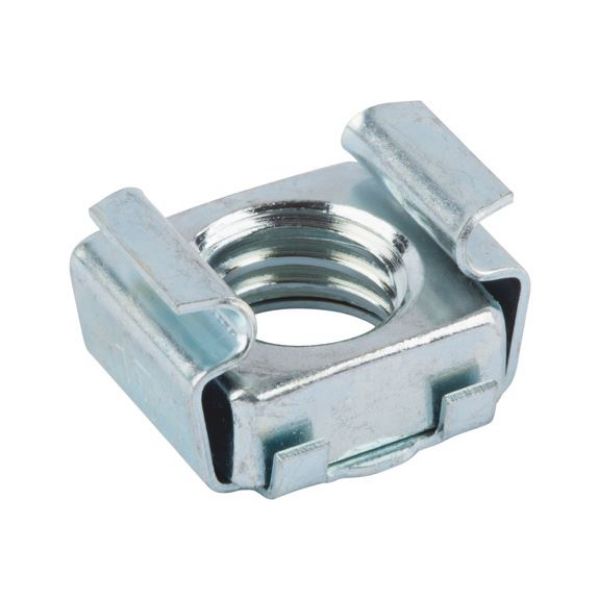

Cage nut

Article No. 03815

W-0381 steel galvanised NUT-CAGE-WO.LOK-(A2K)-M5

€0.26 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

WN 0381, steel, galvanised, blue passivated (A2K), without safeguard

Used as internal connectors for sheet metal structures.
Efficient installation by simply pressing in.
Self-adhesive due to spring-steel nut holder.
Variations in manufacturing tolerances are compensated for during installation by the longitudinal and lateral mobility of the nut in the nut holder.
Can also be used in difficult installation conditions or tight spaces.
Can be reused

WN 0381, steel, galvanised, blue passivated (A2K), without safeguard

Used as internal connectors for sheet metal structures.
Efficient installation by simply pressing in.
Self-adhesive due to spring-steel nut holder.
Variations in manufacturing tolerances are compensated for during installation by the longitudinal and lateral mobility of the nut in the nut holder.
Can also be used in difficult installation conditions or tight spaces.
Can be reused

Products specifications

Material	Steel
Surface	Galvanised
Thread type x nominal diameter (D)	M5
Max. width (b₁)	13.5 mm
Max. length (a₁)	14.2 mm
Height (h₁)	8.5 mm
Min./max. material thickness	0.7-1.6 mm
Punched-hole width x punched-hole length (n)	9.5 x 9.5 mm
Dimensions of square cage nut (L x B x H)	11 x 11 x 4.5 mm
Min./max. length (a)	13.6-14.2 mm
Min./max. internal length (b)	7.7-8.4 mm
Nominal diameter	5 mm
Max. material thickness	1.6 mm
Min. length	13.6 mm
Max. internal length	8.4 mm
Min. internal length	7.7 mm
Internal width (f)	9.3 mm
Punched-hole length	9.5 mm
Version	Without assurance
Min. width	13 mm
