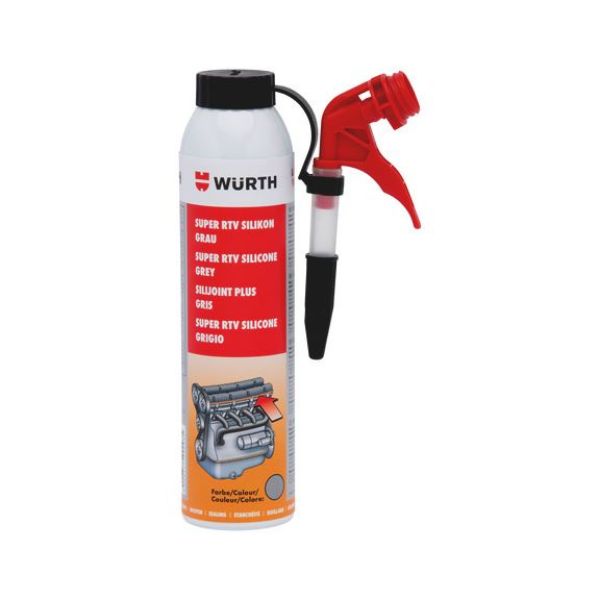

Super RTV silicone adhesive and sealing compound

Article No. 08933316
Adh./sealing comp Super RTV silicone no haz. subst SILSEAL-HTEMP-(SUPER-RTV)-GREY-200ML
€26.20 inc. VAT price per 1 PCS
AVAILABLE
*
+ -
High-quality adhesive and sealing compound for use in industry and the automotive sector.

Excellent resistance to chemicals

  • Can also be used in critical areas in which the seal comes into contact with various liquids
  • Outstanding resistance to engine oil and transmission oil, refrigerant and anti-freeze agent

Non-acidic hardening system

  • Non-corrosive, therefore has no negative impact on electronic components and on lambda probes

Sealant in compressed-air can

  • Easy to dispense without additional aids
  • The fine beads allow the product to be applied uniformly
Notice

When sealing e.g. oil pans and gearboxes it is vital that no sealant gets into the interior. For this reason we recommend to apply the sealant on a joining part surface. Join both parts and then carefully press by hand and lightly slide against each other. Afterwards separate the parts again and then remove the sealant that has gone inside. Join the components again within a max. of 5 minutes and tighten firmly. Before commissioning, observe the hardening time (depending on the sealant thickness).

The usage instructions are recommendations based on the tests we have conducted and are based on our experience; carry out your own tests before each application. We do not assume any liability for a specific application result due to the large number of applications and storage and processing conditions. Insofar as our free customer service provides technical information or acts as an advisory service, no responsibility is assumed by this service except where the advice or information given falls within the scope of our specified, contractually agreed service or the advisor was acting deliberately. We guarantee consistent quality of our products. We reserve the right to make technical changes and further develop products.

High-quality adhesive and sealing compound for use in industry and the automotive sector.

Excellent resistance to chemicals

  • Can also be used in critical areas in which the seal comes into contact with various liquids
  • Outstanding resistance to engine oil and transmission oil, refrigerant and anti-freeze agent

Non-acidic hardening system

  • Non-corrosive, therefore has no negative impact on electronic components and on lambda probes

Sealant in compressed-air can

  • Easy to dispense without additional aids
  • The fine beads allow the product to be applied uniformly
Notice

When sealing e.g. oil pans and gearboxes it is vital that no sealant gets into the interior. For this reason we recommend to apply the sealant on a joining part surface. Join both parts and then carefully press by hand and lightly slide against each other. Afterwards separate the parts again and then remove the sealant that has gone inside. Join the components again within a max. of 5 minutes and tighten firmly. Before commissioning, observe the hardening time (depending on the sealant thickness).

The usage instructions are recommendations based on the tests we have conducted and are based on our experience; carry out your own tests before each application. We do not assume any liability for a specific application result due to the large number of applications and storage and processing conditions. Insofar as our free customer service provides technical information or acts as an advisory service, no responsibility is assumed by this service except where the advice or information given falls within the scope of our specified, contractually agreed service or the advisor was acting deliberately. We guarantee consistent quality of our products. We reserve the right to make technical changes and further develop products.

Instructions

Optimum adhesion to dry, clean and dust-free surfaces. The old sealant must be removed in full from the surface.

Products specifications
Colour Grey
Contents 200 ml
Chemical basis Neutral crosslinked silicones, oxime-based
Smell/fragrance Characteristic
Min./max. temperature resistance -60 to 260 °C
Max. short-term temperature resistance 300 °C
Range of applications Water pumps<br>Oil pumps<br>Front cover<br>Camshaft bearing cover<br>Thermostat housing<br>Oil pans<br>Transmission cover<br>Intake area<br>Sealing of accumolators
Density 1.25 g/cm³
Min. skin-formation time 5 min
Conditions for skin-formation time at 23°C and 50% relative humidity
Full curing speed 3 mm/d
Fully hardening/curing conditions 23°C and 50% relative humidity
Shore A hardness 26
Min. tensile strength 2.2 N/mm²
Conditions for tensile strength in accordance with ASTM D-412
Max. breaking elongation/conditions 550 % / in accordance with DIN 53504
Heat conductance λ 0.2 J/(m*s*K)
Heat conductance λ conditions in accordance with ASTM D-2214/70
Coefficient of thermal expansion 0.0002 1/K
Coefficient of thermal expansion conditions in accordance with ASTM EB-31
Dielectric strength 16 kV/mm
Dielectric strength conditions in accordance with ASTM D-149
Relative permittivity 2.8
Conditions for relative permittivity 1 MHz, ASTM D-150
Loss factor 0.002
Loss factor conditions 1 MHz, ASTM D-150
Specific volume resistivity 1000000000000000 Ohm/cm
Conditions for specific volume resistivity in accordance with ASTM D-257

Würth Catalogue(2)

Catalogue page as PDF 1

Flip catalog

Datasheets(1)

Safety data sheet 1

Products specifications
Colour Grey
Contents 200 ml
Chemical basis Neutral crosslinked silicones, oxime-based
Smell/fragrance Characteristic
Min./max. temperature resistance -60 to 260 °C
Max. short-term temperature resistance 300 °C
Range of applications Water pumps<br>Oil pumps<br>Front cover<br>Camshaft bearing cover<br>Thermostat housing<br>Oil pans<br>Transmission cover<br>Intake area<br>Sealing of accumolators
Density 1.25 g/cm³
Min. skin-formation time 5 min
Conditions for skin-formation time at 23°C and 50% relative humidity
Full curing speed 3 mm/d
Fully hardening/curing conditions 23°C and 50% relative humidity
Shore A hardness 26
Min. tensile strength 2.2 N/mm²
Conditions for tensile strength in accordance with ASTM D-412
Max. breaking elongation/conditions 550 % / in accordance with DIN 53504
Heat conductance λ 0.2 J/(m*s*K)
Heat conductance λ conditions in accordance with ASTM D-2214/70
Coefficient of thermal expansion 0.0002 1/K
Coefficient of thermal expansion conditions in accordance with ASTM EB-31
Dielectric strength 16 kV/mm
Dielectric strength conditions in accordance with ASTM D-149
Relative permittivity 2.8
Conditions for relative permittivity 1 MHz, ASTM D-150
Loss factor 0.002
Loss factor conditions 1 MHz, ASTM D-150
Specific volume resistivity 1000000000000000 Ohm/cm
Conditions for specific volume resistivity in accordance with ASTM D-257
