Twist drill assortment HSS DIN 338 type RN 130° - DRL-MET-SET-DIN338-HSS-(D1-10)-0,5-19PCS

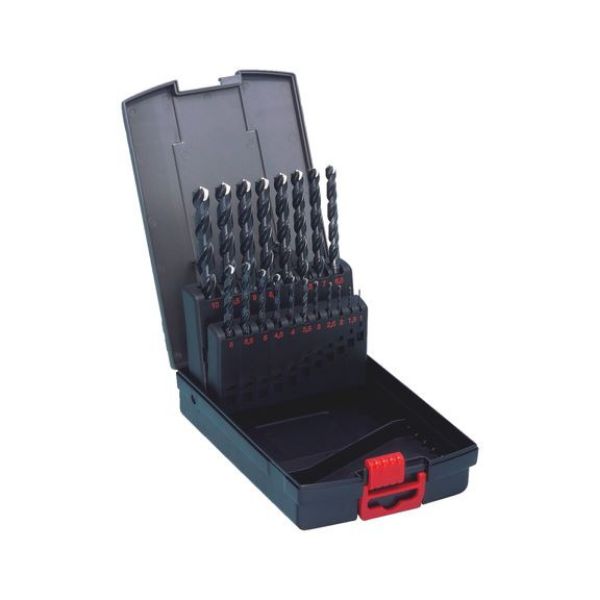

Twist drill assortment HSS DIN 338 type RN 130°

Article No. 0624000001

Twist drill HSS DIN 338 type RN HC assmnt. 19 pcs DRL-MET-SET-DIN338-HSS-(D1-10)-0,5-19PCS ZEBRA

€83.17 inc. VAT price per 1 PCS

Available on Order
Price may vary

Packaging Unit *

Qty:

+ -

19 pieces Steel precision drill for general, broad applications in steel up to 850 N/mm² strength and cast iron.

20% less infeed force compared to conventional drills, with faster work progress and less expenditure of effort

Optimised cross thinning

Highly accurate tapping without centring, even on curved surfaces

Optimum cross-grinding

Ideal for producing core drill holes

Highly precise tip grinding for precise drilling

Excellent adhesion of cooling lubricants and a reduced tendency towards build-up

Vaporised surface

Notice

See overview tables for drill/material assignments

Specification
Technical Information

19 pieces Steel precision drill for general, broad applications in steel up to 850 N/mm² strength and cast iron.

20% less infeed force compared to conventional drills, with faster work progress and less expenditure of effort

Optimised cross thinning

Highly accurate tapping without centring, even on curved surfaces

Optimum cross-grinding

Ideal for producing core drill holes

Highly precise tip grinding for precise drilling

Excellent adhesion of cooling lubricants and a reduced tendency towards build-up

Vaporised surface

Notice

See overview tables for drill/material assignments

Products specifications

Number of pieces in assortment/set	19 PCS
Quality	ZEBRA-Premium
Standard / drilling depth	DIN 338 / 5xD
Shank style	Cylindrical
Material sub-group	General structural steels<br>Non-alloyed tempering steels<br>Cast iron<br>Ductile iron<br>Malleable cast iron<br>Magnesium alloys<br>Copper, low-alloyed<br>Brass, long-chipping<br>Brass, short-chipping<br>Plastics, duroplastic<br>Plastics, thermoplastic
Surface	Vaporised
Cutting material	HSS
Suitable for drill (points system) ( Geeignet für Bohrmaschine )	3 of 4 points
Suitable for cordless drills (points system) ( Geeignet für Akkubohrschrauber )	3 of 4 points
Suitable for upright drilling machine (points system) ( Geeignet für Ständerbohrmaschine )	3 of 4 points
Suitable for milling-drilling centre (points system) ( Geeignet für Fräsbohrzentrum )	1 of 4 points
Service life (points system) ( Standzeit )	3 of 4 points
Drilling speed (point system) (Bohrgeschwindigkeit )	3 of 4 points
Bore hole quality (point system) (Bohrlochgüte)	4 of 4 points
Versatility (points system) ( Vielseitigkeit )	2 of 4 points
Drilling behaviour (point system) (Bohrverhalten)	3 of 4 points
Self-centring	Yes

Products specifications

Number of pieces in assortment/set	19 PCS
Quality	ZEBRA-Premium
Standard / drilling depth	DIN 338 / 5xD
Shank style	Cylindrical
Material sub-group	General structural steels<br>Non-alloyed tempering steels<br>Cast iron<br>Ductile iron<br>Malleable cast iron<br>Magnesium alloys<br>Copper, low-alloyed<br>Brass, long-chipping<br>Brass, short-chipping<br>Plastics, duroplastic<br>Plastics, thermoplastic
Surface	Vaporised
Cutting material	HSS
Suitable for drill (points system) ( Geeignet für Bohrmaschine )	3 of 4 points
Suitable for cordless drills (points system) ( Geeignet für Akkubohrschrauber )	3 of 4 points
Suitable for upright drilling machine (points system) ( Geeignet für Ständerbohrmaschine )	3 of 4 points
Suitable for milling-drilling centre (points system) ( Geeignet für Fräsbohrzentrum )	1 of 4 points
Service life (points system) ( Standzeit )	3 of 4 points
Drilling speed (point system) (Bohrgeschwindigkeit )	3 of 4 points
Bore hole quality (point system) (Bohrlochgüte)	4 of 4 points
Versatility (points system) ( Vielseitigkeit )	2 of 4 points
Drilling behaviour (point system) (Bohrverhalten)	3 of 4 points
Self-centring	Yes
