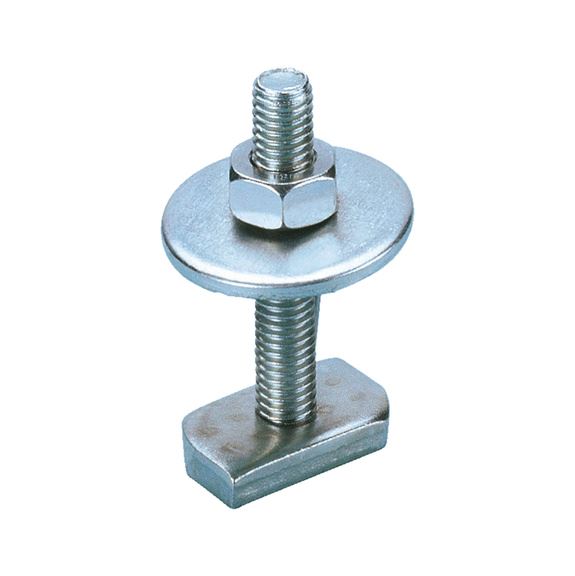

VARIFIX® hammer head fastener Standardfix - C2C

Article No. 0862100003

VARIFIX T-head fixing ST ZN standard fix HAMHDFXNG-COMPLETE-PRFL26/28-M8X40 VARIFIX

€0.40 inc. VAT price per 1 PCS

Available on Order
Price may vary

Qty:

+ -

Preassembled with nut and washer, galvanised

Threaded bolt strength class 4.6

Preassembled with nut and washer, galvanised

Threaded bolt strength class 4.6

Application area

Recommended for direct fastening of pipe clamps

Products specifications

Suitable for mounting rail	26 x 18 mm<br>26 x 26 mm<br>28 x 28 mm
Nominal diameter (G)	8 mm
Washer diameter (d₂)	25 mm
Length (l)	22 mm
Width (B)	13 mm
Thickness (t)	4 mm
Length (hammer head and stud bolt) (L_G)	40 mm
Washer thickness (h₁)	1.5 mm
Surface	Zinc plated
Material	Steel
Weight	28 g
Thread type	Metric thread
