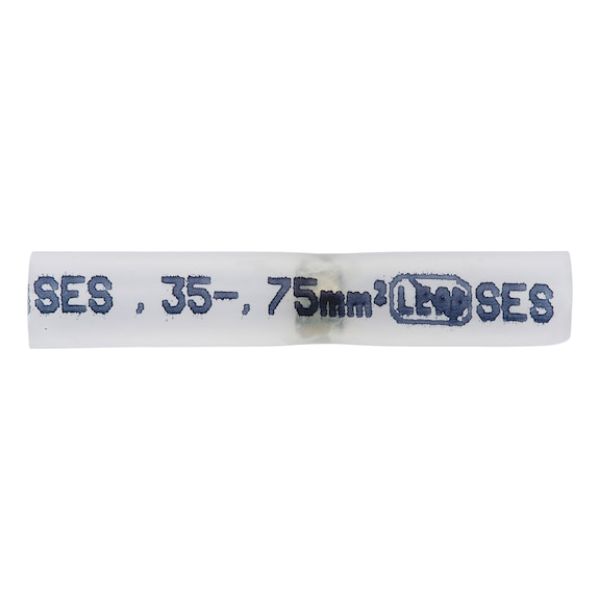

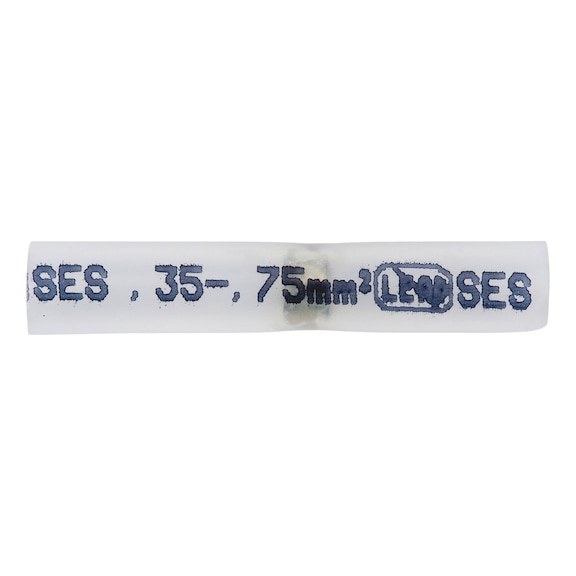

Heat-shrink solder connector

Article No. 05558100

Heat shrink butt connector RoHS HIGH-END BUTTCON-SLDR-HSHRTUBE-WHITE-(0,35-0,75)

€0.77 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Double-walled 3M heat-shrink tubing for increased mechanical resistance and disruptive strength. Individual strands cannot penetrate through the heat-shrink tubing.

Heat-shrink tubing 100% adhesive-coated for increased safety compared with conventional solder connectors
Lead-free solder with increased surface tension for higher tensile strength since the solder does not disperse as rapidly
More user-friendly than conventional solder connectors because it has a larger internal diameter
Transparent heat-shrink tubing for straightforward visual inspection of the connection

Notice

Avoid localised overheating of the heat-shrink tubing.

RoHS-compliant, lead-free design

Specification
Application
Technical Information
Documents

Double-walled 3M heat-shrink tubing for increased mechanical resistance and disruptive strength. Individual strands cannot penetrate through the heat-shrink tubing.

Heat-shrink tubing 100% adhesive-coated for increased safety compared with conventional solder connectors
Lead-free solder with increased surface tension for higher tensile strength since the solder does not disperse as rapidly
More user-friendly than conventional solder connectors because it has a larger internal diameter
Transparent heat-shrink tubing for straightforward visual inspection of the connection

Notice

Avoid localised overheating of the heat-shrink tubing.

RoHS-compliant, lead-free design

Application area

Dust-proof and damp-proof connections

Products specifications

Min./max. wire cross section	0.35-0.75 mm²
Colour	White
Dielectric strength	36 kV/mm
IP protection class	IP 67
Min./max. temperature conditions	-55 to 110 °C
Min. shrinkage temperature	500 °C
Length	27.5 mm
