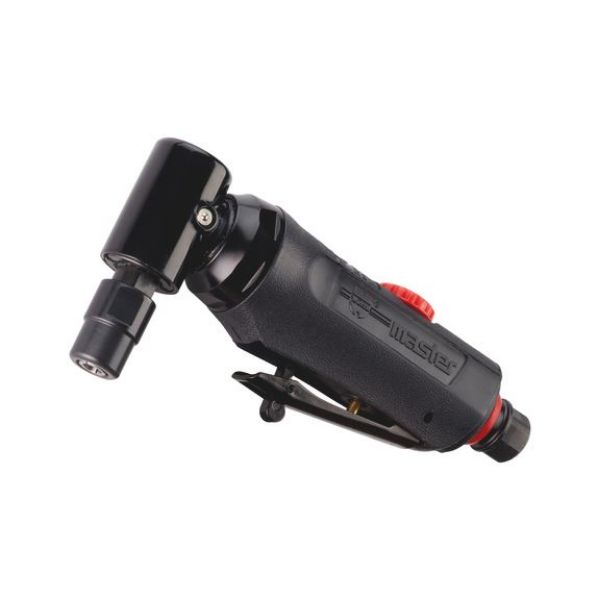

Pneumatic rod grinder DSW 22

Article No. 07032310

Pneumatic die grinder, DSW 22 DIEGRIND-PN-DSW22 MASTER DSW22

€136.84 inc. VAT price per 1 PCS

Available on Order
Price may vary

Packaging Unit *

Qty:

+ -

Long-life, handy rod grinder, angled design, with tool-free speed control and rubberised handle to protect against vibrations and cold hands.

Keeps hands warm

Rubberised handle

Effortless work and low vibration

Lightweight, compact deign

Connection hose does not tangle

Rotating compressed air connection

Notice

When used regularly, the machine should be lightly oiled via the compressed air supply every day. The use of a mist oiler is recommended.
Plug-in nipple not included in the scope of delivery

2 Years Warranty on manufacturing and material defects

Excluded are damages caused by improper use, overloading or failure to observe the operating instructions.

Specification
Application
Technical Information
Documents

Long-life, handy rod grinder, angled design, with tool-free speed control and rubberised handle to protect against vibrations and cold hands.

Keeps hands warm

Rubberised handle

Effortless work and low vibration

Lightweight, compact deign

Connection hose does not tangle

Rotating compressed air connection

Notice

When used regularly, the machine should be lightly oiled via the compressed air supply every day. The use of a mist oiler is recommended.
Plug-in nipple not included in the scope of delivery

2 Years Warranty on manufacturing and material defects

Excluded are damages caused by improper use, overloading or failure to observe the operating instructions.

Application area

Rod grinder developed specifically for the toughest applications (e.g. deburring work) with high power reserves.

Products specifications

Version	Angled
Max. idle speed	22000 U/min(rpm)
Power output	224 W
Max. drill chuck span width	6 mm
Min. hose inner diameter	8 mm
Weight of machine	0.5 kg
Air consumption	113 l/min
Connection thread	1/4 inch

Products specifications

Version	Angled
Max. idle speed	22000 U/min(rpm)
Power output	224 W
Max. drill chuck span width	6 mm
Min. hose inner diameter	8 mm
Weight of machine	0.5 kg
Air consumption	113 l/min
Connection thread	1/4 inch
