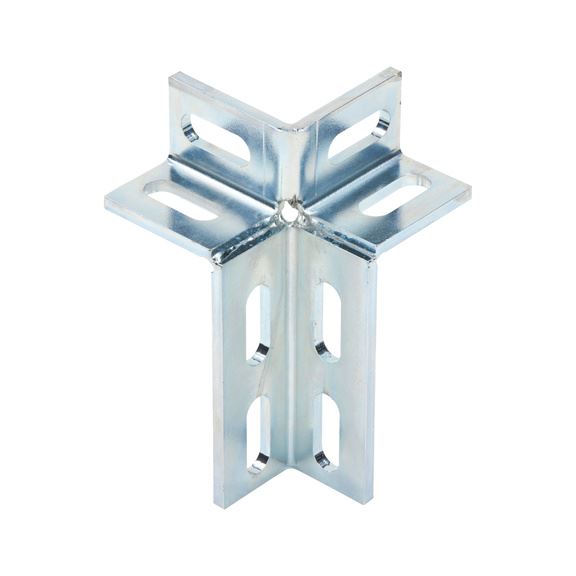

VARIFIX® rail connector 3D - C2C

Article No. 0862006125

VARIFIX rail connector 3D RLCON-3D-PRFL41-LONGHO VARIFIX

€19.47 inc. VAT price per 1 PCS

Available on Order
Price may vary

Packaging Unit *

Qty:

+ -

With slot

Cradle to Cradle^®-certified

Upgrading the building using non-hazardous materials
Wider range of application for GreenBuilding and building certification in accordance with LEED^®, BREEAM^® and DGNB

Specification
Application
Technical Information
Documents

With slot

Cradle to Cradle^®-certified

Upgrading the building using non-hazardous materials
Wider range of application for GreenBuilding and building certification in accordance with LEED^®, BREEAM^® and DGNB

Application area

For cross-joints of C-mounting rails

Frame structures and free structures

Can also be mounted directly in the hole pattern on the C-assembly rails

Products specifications

Suitable for mounting rail	41 x 41 mm<br>41 x 22 mm<br>41 x 44 mm<br>41 x 62 mm
Length (l₁)	125 mm
Length 2 (L₂)	62 mm
Width (b₁)	49 mm
Width 2 (B₂)	47 mm
Thickness (t₁)	6 mm
Elongated hole length (LL)	40 mm
Elongated hole width (LB)	15 mm
Hole distance (LA₁)	57 mm
Weight	0.85 kg
Material	Steel
Surface	Galvanised

Würth Catalogue(2)

Catalogue page as PDF 1 | 2 | 3 | 4 | 5 | 6

Datasheets(1)

CAD Data (available after login)

Products specifications

Suitable for mounting rail	41 x 41 mm<br>41 x 22 mm<br>41 x 44 mm<br>41 x 62 mm
Length (l₁)	125 mm
Length 2 (L₂)	62 mm
Width (b₁)	49 mm
Width 2 (B₂)	47 mm
Thickness (t₁)	6 mm
Elongated hole length (LL)	40 mm
Elongated hole width (LB)	15 mm
Hole distance (LA₁)	57 mm
Weight	0.85 kg
Material	Steel
Surface	Galvanised
