Pan head screw with H cross recess - SCR-RSD-DIN7985-A4/70-H2-M4X50

Pan head screw with H cross recess - SCR-RSD-DIN7985-A4/70-H2-M4X50

Pan head screw with H cross recess - SCR-RSD-DIN7985-A4/70-H2-M4X50

Pan head screw with H cross recess - SCR-RSD-DIN7985-A4/70-H2-M4X50

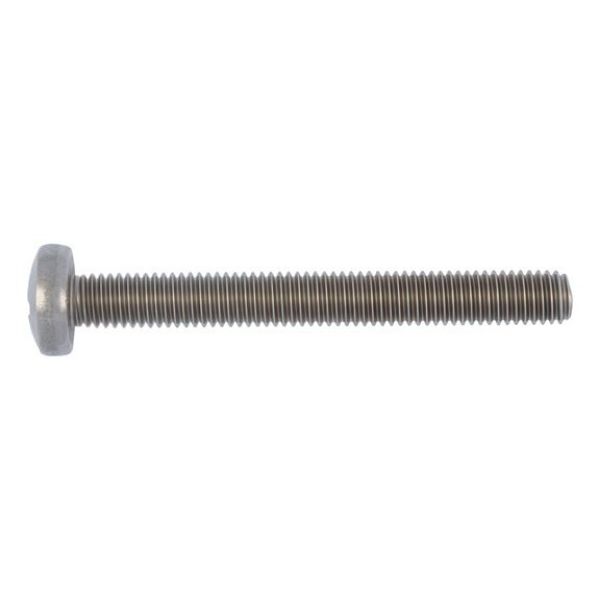

Pan head screw with H cross recess

Article No. 0293450

DIN 7985 stainless steel A4 plain H SCR-RSD-DIN7985-A4/70-H2-M4X50

€13.57 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 7985, stainless steel A4, plain

Notice

DIN 7985 has been withdrawn and replaced by ISO 7045. There is some similarity (some head heights and head diameters changed | thread lengths changed | penetration depths of recessed heads changed | standard title of raised countersunk head screw changed to flat head screw).

Specification
Technical Information
Documents

DIN 7985, stainless steel A4, plain

Notice

DIN 7985 has been withdrawn and replaced by ISO 7045. There is some similarity (some head heights and head diameters changed | thread lengths changed | penetration depths of recessed heads changed | standard title of raised countersunk head screw changed to flat head screw).

Products specifications

Thread type x nominal diameter (d₁)	M4
Length (l₁)	50 mm
Head diameter (d_k)	8 mm
Head height (k₁)	3.1 mm
Standards	DIN 7985
Material	Stainless steel A4
Property class	70
Surface	Bare
RoHS-compliant	Yes
Head type	Pan head
Drive type	Crosshead
Internal drive	H2
Thread type	Metric thread
Pitch	0.7 mm
Thread format	Standard metric thread
Product class	A

Würth Catalogue(2)

Catalogue page as PDF 1 | 2 | 3

Datasheets(1)

CAD Data (available after login)

Products specifications

Thread type x nominal diameter (d₁)	M4
Length (l₁)	50 mm
Head diameter (d_k)	8 mm
Head height (k₁)	3.1 mm
Standards	DIN 7985
Material	Stainless steel A4
Property class	70
Surface	Bare
RoHS-compliant	Yes
Head type	Pan head
Drive type	Crosshead
Internal drive	H2
Thread type	Metric thread
Pitch	0.7 mm
Thread format	Standard metric thread
Product class	A
